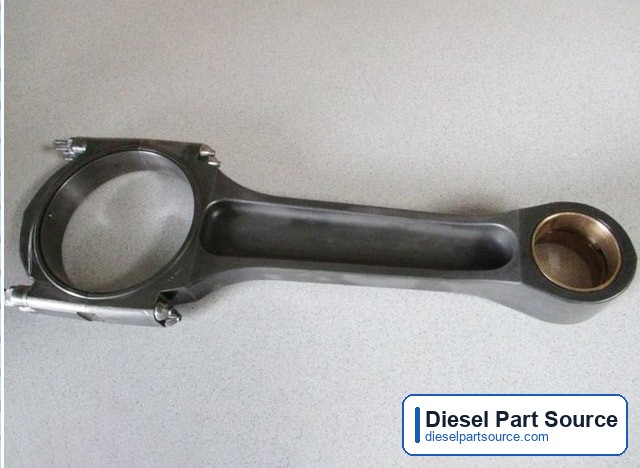

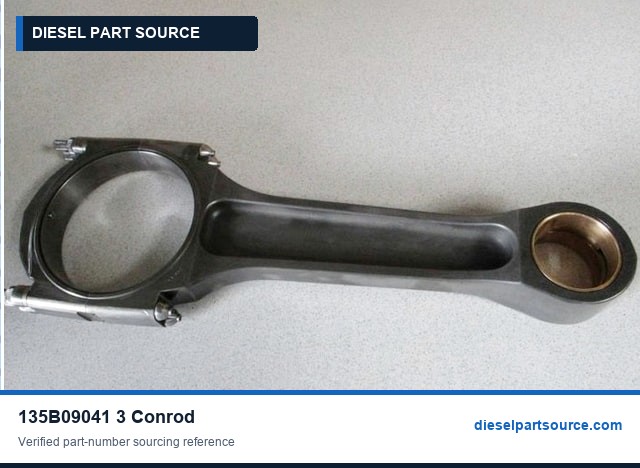

135B09041/3 Conrod. Listed in MTU 538 catalog references; confirm installation and current availability before ordering.
Check 135B09041/3 availability: Start with 135B09041/3 and the quantity. Add an engine serial number or a photo of the old Conrod if available; we will follow up on any missing details.
135B09041/3 Specification
About 135B09041/3 - Conrod
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
135B09041/3 is a conrod catalogued for MTU 538 engines. The catalog unit weight is 9.690 kg, which we use to estimate freight before quoting.
Technical Notes: Pistons and liners
Pistons, rings, and wet cylinder liners form the combustion chamber and carry the highest thermal loads in the engine. They are usually replaced during a major overhaul, and liner protrusion and size grades have to be checked so the cylinder head seals correctly.
When This Type of Part Is Usually Replaced
- oil consumption or blow-by rises beyond the expected level
- borescope inspection shows liner scoring, bore polishing, or ring damage
- liner cavitation is found on the coolant side
Checks Before Ordering
- Order liners with their sealing rings, and pistons with complete ring sets
- Size grades and weight classes must be matched within one engine
- Measurements from the inspection record decide which grade to order
Engine Catalog References
135B09041/3 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 12V 538 TB92 | 12 | V | marine | build 2 |
| 20V 538 TB92 | 20 | V | marine | build 2 |
| 16V 538 TB93 | 16 | V | marine | build 3 |
| 20V 538 TB93 | 20 | V | marine | build 3 |
| 12V 538 TB8 | 12 | V | — | build TB |
| 12V 538 TB9 | 12 | V | — | build TB |
| 20V 538 TB1 | 20 | V | — | build TB |
| 20V 538 TB6 | 20 | V | — | build TB |
| 20V 538 TB7 | 20 | V | — | build TB |
| 16V 538 TB9 | 16 | V | — | build TB |
How Each Model Code Reads
- 12V 538 TB92: 12 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 20V 538 TB92: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 16V 538 TB93: 16 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 538 TB93: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 12V 538 TB8: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 12V 538 TB9: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB1: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB6: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB7: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 16V 538 TB9: 16 cylinders in V arrangement, Series 538, single-digit build code TB
Full parts list for this model family: MTU 538 TB1 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 135B09041/3 depends on the full engine serial number and assembly position.
Usually Ordered with Conrod
Connecting-rod bearings are replaced in pairs with new rod bolts where required. These MTU 538 references are commonly checked in the same job; each still needs its own fitment check.
- 5610380850 Conrod Bushing Size 0
- 5610380950 Conrod Bushing Size 1
- 5610381150 Conrod Bushing Size 3
- X52403800001 Conrod Bearing
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5610300520 | Reference only; direction unconfirmed |
| 135B09041/2 | Reference only; direction unconfirmed |
| 135B09781/2 | Reference only; direction unconfirmed |
| 5610300320/01 | Reference only; direction unconfirmed |
| 5610300320/02 | Reference only; direction unconfirmed |
| 5610300320/03 | Reference only; direction unconfirmed |
| 135B09012/6 | Reference only; direction unconfirmed |
| 135B09041/3B | Reference only; direction unconfirmed |
Common Applications
- Major overhaul
- In-frame rebuild
- Marine engine service
- Industrial engine repair
Information to Send for Quotation
- Part number: 135B09041/3
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 135B09041/3, confirm engine model, serial number, required quantity, and destination before ordering.
- If 135B09041/3 markings or replacement status are unclear, send old-part photos or nameplate details.
