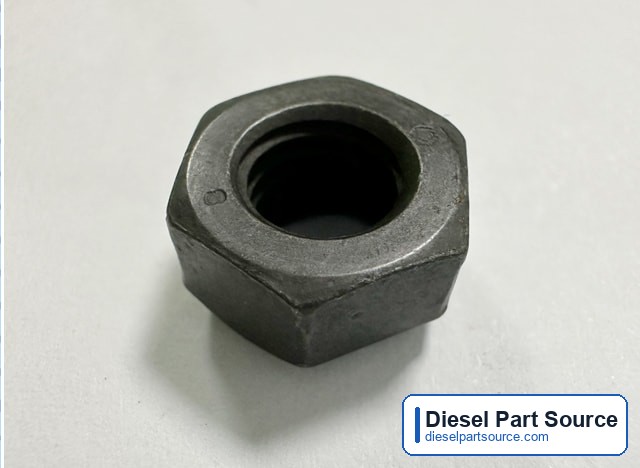

206925008000 Hex Nut. Listed in MTU 1163 catalog references; confirm installation and current availability before ordering.
Check 206925008000 availability: Start with 206925008000 and the quantity. Add an engine serial number or a photo of the old Hex Nut if available; we will follow up on any missing details.
206925008000 Specification
About 206925008000 - Hex Nut
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
206925008000 is a hex nut catalogued for MTU 1163 engines. The catalog unit weight is 0.005 kg, which we use to estimate freight before quoting.
Technical Notes: Drive components
Gears, shafts, couplings, belts, fasteners, and locking parts transmit drive to pumps, camshafts, and auxiliaries and hold assemblies together. Many of these items are inexpensive but critical: a missing tab washer or a reused stretch bolt can cause a far larger failure.
When This Type of Part Is Usually Replaced
- locking elements such as tab washers or self-locking nuts have been removed
- gear teeth, splines, or keyways show wear or pitting
- belts show cracks, glazing, or incorrect tension after adjustment
Checks Before Ordering
- Use new fasteners where the maintenance documentation specifies single use
- Order belts as matched sets on multi-belt drives
- Check slotted nuts, washers, and pins together with the component they secure
Engine Catalog References
206925008000 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 1163 TB73L | 16 | V | marine | build 3 |
| 20V 1163 TB73 | 20 | V | marine | build 3 |
| 20V 1163 TB73L | 20 | V | marine | build 3 |
| 12V 1163 TB93 | 12 | V | marine | build 3 |
| 16V 1163 TB93 | 16 | V | marine | build 3 |
| 20V 1163 TB93 | 20 | V | marine | build 3 |
| 16V 1163 TB76 | 16 | V | marine | build 6 |
| 16V 1163 TB76L | 16 | V | marine | build 6 |
| 16V 1163 TB82 | 16 | V | — | build 2 |
| 20V 1163 TB82 | 20 | V | — | build 2 |
How Each Model Code Reads
- 16V 1163 TB73L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 20V 1163 TB73: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3
- 20V 1163 TB73L: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 12V 1163 TB93: 12 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB93: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 1163 TB93: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB76: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6
- 16V 1163 TB76L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6, increased rating (L)
- 16V 1163 TB82: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
- 20V 1163 TB82: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
Full parts list for this model family: MTU 1163 TB73 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 206925008000 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 11.14796-0006 | Reference only; direction unconfirmed |
Common Applications
- Engine assembly
- Marine propulsion
- Industrial drives
- Generator sets
Information to Send for Quotation
- Part number: 206925008000
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 206925008000, confirm engine model, serial number, required quantity, and destination before ordering.
- If 206925008000 markings or replacement status are unclear, send old-part photos or nameplate details.
