4420500227 Exhaust Valve. Listed in MTU 183 catalog references; confirm installation and current availability before ordering.
Check 4420500227 availability: Start with 4420500227 and the quantity. Add an engine serial number or a photo of the old Exhaust Valve if available; we will follow up on any missing details.
4420500227 Specification

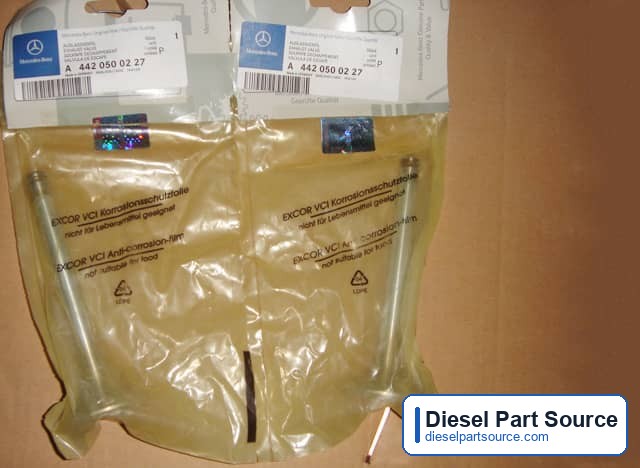

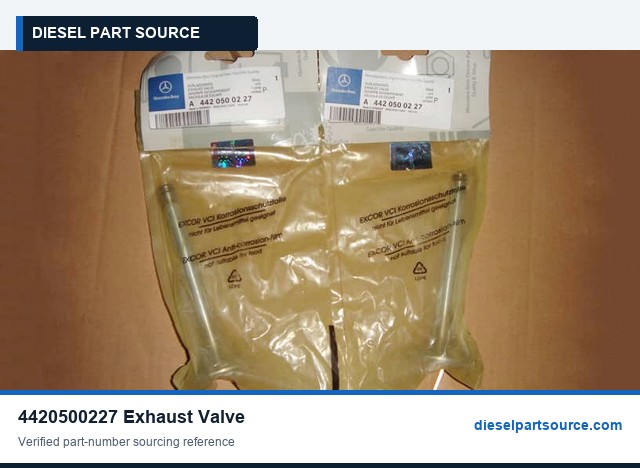

About 4420500227 - Exhaust Valve
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
4420500227 is an exhaust valve catalogued for MTU 183 engines. The catalog unit weight is 0.240 kg, which we use to estimate freight before quoting.
Technical Notes: Valve train
Valves, guides, seats, springs, and rocker components control gas exchange in the cylinder head. Wear in the valve train shows up as compression loss, rising exhaust temperatures, or changes in valve clearance between service intervals.
When This Type of Part Is Usually Replaced
- valve clearance changes quickly between adjustments
- compression is low on one or more cylinders
- valves or seats show burning, pitting, or recession during head overhaul
Checks Before Ordering
- Valve guides and seats are matched to the valve stem and head; order them per cylinder head
- Replace valve stem seals whenever valves are removed
- Inner and outer valve springs are usually separate part numbers
Engine Catalog References
4420500227 is listed for 8 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 183 TE52 | 8 | V | marine | build 2 |
| 8V 183 AA51 | 8 | V | marine | build 1 |
| 6R 183 TD13H | 6 | In-line | — | build 3 |
| 12V 183 TE93 | 12 | V | marine | build 3 |
| 12V 183 TE52 | 12 | V | marine | build 2 |
| 12V 183 TD13 | 12 | V | — | build 3 |
| 12V 183 TB32 | 12 | V | generator sets | build 2 |
| 12V 183 TA12 | 12 | V | — | build 2 |
How Each Model Code Reads
- 8V 183 TE52: 8 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 5 (marine), build 2
- 8V 183 AA51: 8 cylinders in V arrangement, Series 183, charging and cooling code AA, application group 5 (marine), build 1
- 6R 183 TD13H: 6 cylinders in line, Series 183, turbocharged, charge-air code TD, application group 1, build 3, rating variant H
- 12V 183 TE93: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 9 (marine), build 3
- 12V 183 TE52: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 5 (marine), build 2
- 12V 183 TD13: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TD, application group 1, build 3
- 12V 183 TB32: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TB, application group 3 (generator sets), build 2
- 12V 183 TA12: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TA, application group 1, build 2
Full parts list for this model family: MTU 183 AA51 to TE93 Parts List
Engine-series references do not confirm every installation. Final fitment of 4420500227 depends on the full engine serial number and assembly position.
Usually Ordered with Exhaust Valve
Valve work usually includes guides, seats, stem seals, and springs. These MTU 183 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 4230500327 | Reference only; direction unconfirmed |
| 4230500427 | Reference only; direction unconfirmed |
| 4220500127 | Reference only; direction unconfirmed |
| 4220500027 | Reference only; direction unconfirmed |
| 4420500327 | Reference only; direction unconfirmed |
Common Applications
- Cylinder-head overhaul
- Marine engine maintenance
- Power generation service
Information to Send for Quotation
- Part number: 4420500227
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 4420500227, confirm engine model, serial number, required quantity, and destination before ordering.
- If 4420500227 markings or replacement status are unclear, send old-part photos or nameplate details.
