700386032000 Shaft Seal. Listed in MTU 396 catalog references; confirm installation and current availability before ordering.
Check 700386032000 availability: Start with 700386032000 and the quantity. Add an engine serial number or a photo of the old Shaft Seal if available; we will follow up on any missing details.
700386032000 Specification
About 700386032000 - Shaft Seal
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.

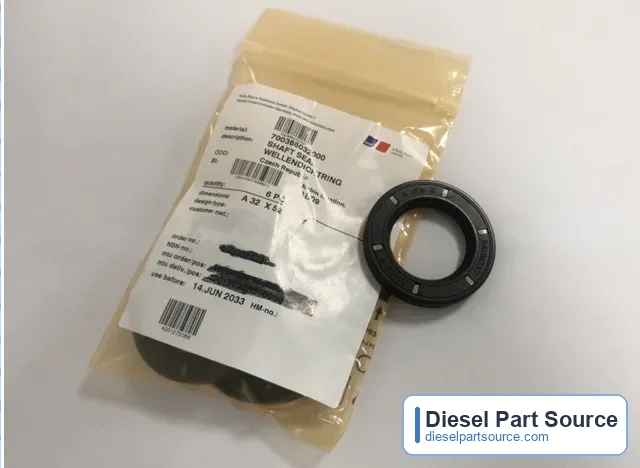

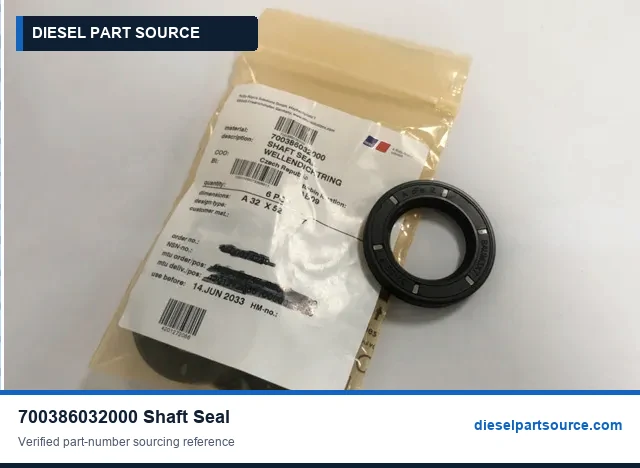

700386032000 is a shaft seal from the coolant pump group of MTU 396 engines. The catalog unit weight is 0.019 kg, which we use to estimate freight before quoting.
Technical Notes: Gaskets and seals
Gaskets, O-rings, and sealing rings keep oil, coolant, fuel, charge air, and exhaust gas in their own circuits. On high-speed MTU engines they work against high combustion pressures and frequent thermal cycling, so a seal that looks intact can still have lost its elasticity or set to the shape of the old joint.
When This Type of Part Is Usually Replaced
- a joint has been opened for inspection or repair, even if the old seal looks usable
- oil or coolant weeping appears at a cover, pipe flange, or housing
- a coolant test shows oil contamination or combustion gas in the cooling system
Checks Before Ordering
- Material matters: fuel-system and coolant-system O-rings of the same size can use different elastomers
- Superseded gasket numbers often reflect a material or thickness change, so mixed old and new gaskets on one joint should be avoided
- Order the complete set for a joint rather than single pieces when the cover or head comes off
Engine Catalog References
700386032000 is listed for 8 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 12V 396 TC54 | 12 | V | marine | build 4 |
| 12V 396 TC64 | 12 | V | marine | build 4 |
| 12V 396 TE64 | 12 | V | marine | build 4 |
| 12V 396 TE74 | 12 | V | marine | build 4 |
| 12V 396 TE74L | 12 | V | marine | build 4 |
| 12V 396 TE84 | 12 | V | — | build 4 |
| 12V 396 TE94 | 12 | V | marine | build 4 |
| 16V 396 TB34 | 16 | V | generator sets | build 4 |
How Each Model Code Reads
- 12V 396 TC54: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TC, application group 5 (marine), build 4
- 12V 396 TC64: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TC, application group 6 (marine), build 4
- 12V 396 TE64: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 6 (marine), build 4
- 12V 396 TE74: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 7 (marine), build 4
- 12V 396 TE74L: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 7 (marine), build 4, increased rating (L)
- 12V 396 TE84: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 8, build 4
- 12V 396 TE94: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 9 (marine), build 4
- 16V 396 TB34: 16 cylinders in V arrangement, Series 396, turbocharged, charge-air code TB, application group 3 (generator sets), build 4
Full parts list for these engines: MTU 12V 396 TB94 to TE94 Parts List, MTU 16V 396 TB34 Parts List
Engine-series references do not confirm every installation. Final fitment of 700386032000 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
700386032000 has no public alternative number listed in our current data. We still check old-part photos, engine serial number, and catalog position for supersession before quotation.
Other Parts in the Same Assembly Group
Catalog descriptions for MTU 396 engines list these part numbers under the coolant pump. The grouping follows the catalog text; it is not a confirmed kit list or a drawing revision. Parts in the same group are often renewed together, but each reference still needs its own fitment check against the engine serial number.
| Part number | Description |
|---|---|
| 5502010276 | Thrust Washer |
| 5592010307 | Impeller |
All assembly group on this page are collected in the assembly & BOM reference index.
Common Applications
- Overhaul kits
- Marine service
- Industrial maintenance
- Generator repair
Information to Send for Quotation
- Part number: 700386032000
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 700386032000, confirm engine model, serial number, required quantity, and destination before ordering.
- If 700386032000 markings or replacement status are unclear, send old-part photos or nameplate details.
