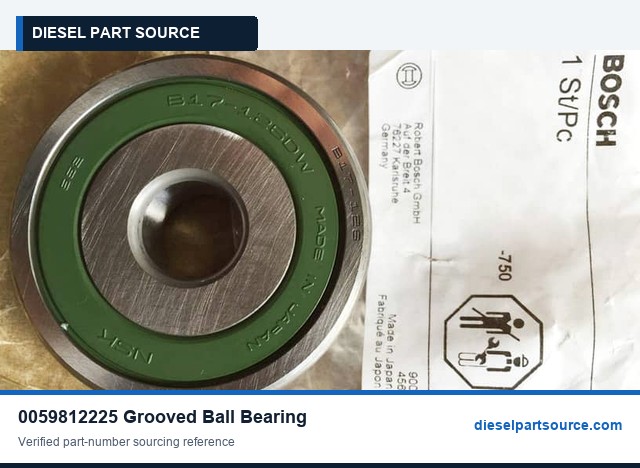

0059812225 Deep-Groove Ball Bearing. Listed in MTU 183 catalog references; confirm installation and current availability before ordering.
Check 0059812225 availability: Start with 0059812225 and the quantity. Add an engine serial number or a photo of the old Deep-Groove Ball Bearing if available; we will follow up on any missing details.
0059812225 Specification
About 0059812225 - Deep-Groove Ball Bearing
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
0059812225 is a deep-groove ball bearing catalogued for MTU 183 engines. The catalog unit weight is 0.280 kg, which we use to estimate freight before quoting.
Technical Notes: Bearings
Main and connecting-rod bearings support the crankshaft and run on a thin oil film. MTU bearings are supplied in size grades to suit original and reground crankshafts, so the size marked on the old shells or on the crankshaft record has to be known before ordering.
When This Type of Part Is Usually Replaced
- the engine reaches its major-overhaul interval
- oil analysis or filter inspection shows bearing material
- oil pressure loss or knocking points to bearing wear
Checks Before Ordering
- Confirm the size grade (for example size 0 or an undersize) from the old shells or crankshaft measurements
- Replace bearings as complete sets per crankshaft journal type
- Thrust bearings and washers should be checked together with the main bearings
Engine Catalog References
0059812225 is listed for 8 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 183 TE52 | 8 | V | marine | build 2 |
| 8V 183 AA51 | 8 | V | marine | build 1 |
| 6R 183 TD13H | 6 | In-line | — | build 3 |
| 12V 183 TE93 | 12 | V | marine | build 3 |
| 12V 183 TE52 | 12 | V | marine | build 2 |
| 12V 183 TD13 | 12 | V | — | build 3 |
| 12V 183 TB32 | 12 | V | generator sets | build 2 |
| 12V 183 TA12 | 12 | V | — | build 2 |
How Each Model Code Reads
- 8V 183 TE52: 8 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 5 (marine), build 2
- 8V 183 AA51: 8 cylinders in V arrangement, Series 183, charging and cooling code AA, application group 5 (marine), build 1
- 6R 183 TD13H: 6 cylinders in line, Series 183, turbocharged, charge-air code TD, application group 1, build 3, rating variant H
- 12V 183 TE93: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 9 (marine), build 3
- 12V 183 TE52: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 5 (marine), build 2
- 12V 183 TD13: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TD, application group 1, build 3
- 12V 183 TB32: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TB, application group 3 (generator sets), build 2
- 12V 183 TA12: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TA, application group 1, build 2
Full parts list for this model family: MTU 183 AA51 to TE93 Parts List
Engine-series references do not confirm every installation. Final fitment of 0059812225 depends on the full engine serial number and assembly position.
Common Replacement Scenarios
This part is commonly replaced when:
- bearing clearance, surface scoring, or abnormal crankshaft/camshaft wear is found during overhaul
- standard or size-grade selection must be confirmed before shipment
- buyers need matched bearing references for the same overhaul kit
Cross-Reference and Superseded Part Numbers
0059812225 has no public alternative number listed in our current data. We still check old-part photos, engine serial number, and catalog position for supersession before quotation.
Common Applications
- Engine overhaul
- Crankshaft service
- Marine and industrial engines
Information to Send for Quotation
- Exact part number: 0059812225
- Part name or assembly position: Deep-Groove Ball Bearing
- Engine model / series: MTU 183
- Engine serial number from nameplate
- Old-part photo showing number, connector, port, or size marking
- Required quantity and whether partial shipment is acceptable
- Destination country, delivery deadline, and preferred shipping method
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Ordering Notes
For 0059812225, send the engine model, serial number, quantity, old-part photo, and destination country. We will confirm whether the item is OEM, OEM-alternative, reman, or superseded before quotation.
0059812225 FAQ
Does 0059812225 fit MTU 183?
0059812225 Deep-Groove Ball Bearing is checked against MTU 183. Final fitment depends on the engine serial number, rating, and installation position.
What information is needed to quote 0059812225?
Send the part number, engine model, engine serial number, old-part photo, quantity, destination country, and required delivery date. This lets us confirm stock route, packing, and shipping options.
Can you check alternatives or superseded numbers for 0059812225?
0059812225 is checked for supersession before quote. If there is a newer or reman route, we confirm it with the engine serial number and old-part photo.
When is 0059812225 usually replaced?
bearing clearance, surface scoring, or abnormal crankshaft/camshaft wear is found during overhaul; standard or size-grade selection must be confirmed before shipment; buyers need matched bearing references for the same overhaul kit.
Verification Notes
- For 0059812225, confirm engine model, serial number, required quantity, and destination before ordering.
- If 0059812225 markings or replacement status are unclear, send old-part photos or nameplate details.
- Priority item: part number, supersession, and export packing details are checked before quote.
