MTU 956 Series Engine Parts Catalog

Catalog Drawing Positions

These are catalog drawing relationships, not a confirmed kit. Check the revision and your engine serial range before using the positions. Every drawing group in the catalog is also collected in the assembly & BOM reference index.

MTU 956/1163 high-pressure fuel-line reference

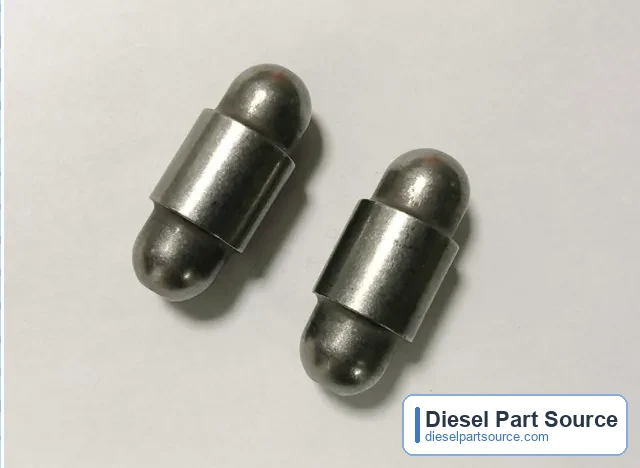

• Position 25: 5840780024 Thrust member
• Position 20: 5840700632/87 High-pressure fuel line
• Position 140: 5840782802 Supply pipe
• Position 50: 700429020003 O-ring
• Position 90: 700429017002 O-ring

MTU 956/1163 coolant pump assembly

Catalog descriptions for MTU 956/1163 engines list these part numbers under the coolant pump. The grouping follows the catalog text; it is not a confirmed kit list or a drawing revision.

• 007603016105 Copper Sealing RING
• 000910016002 Plug

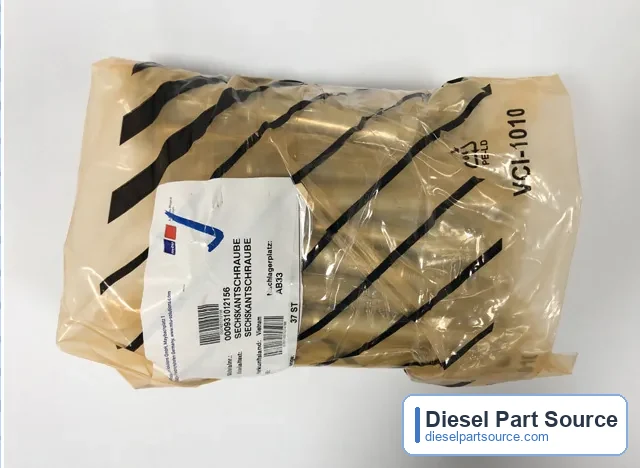

• 000931012156 HEX Screw
• 5802040290 Retainer
• 000934012008 Nut hex
• 000137012202 Washer Spring B12
• 000137010202 Washer Spring B10
• 000933010093 HEX Screw
• 700429045000 O-ring
• 0002041116 Rotary SEAL
• 700429178000 O-ring
• 5842040219 Bearing Housing

MTU 956 coolant pump assembly

Catalog descriptions for MTU 956 engines list these part numbers under the coolant pump. The grouping follows the catalog text; it is not a confirmed kit list or a drawing revision.

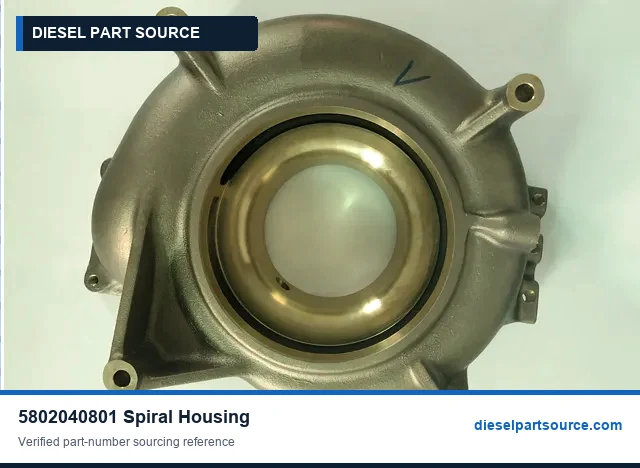

• 5802040801 Spiral Housing
• 5802040072 Nut
• 5802040806 Impeller
• 700429100000 O-ring
• 5842040257 SEAL Carrier

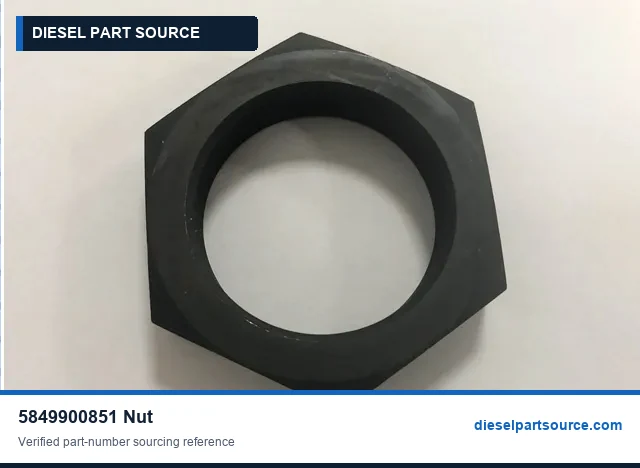

• 5849900851 Nut

MTU 956/1163 bleed valve assembly

Catalog descriptions for MTU 956/1163 engines list these part numbers under the bleed valve. The grouping follows the catalog text; it is not a confirmed kit list or a drawing revision.

• X59699100286 Pressure Spring
• X59699100285 Pressure Spring
• X54514100028 Diaphragm

MTU 956/1163 hp fuel line assembly

Catalog descriptions for MTU 956/1163 engines list these part numbers under the hp fuel line. The grouping follows the catalog text; it is not a confirmed kit list or a drawing revision.

• 5840780024 Thrust Member
• 5840782802 Supply PIPE

Catalog Scope and Fitment Method

MTU 956 Series Engine Parts covers Gaskets and seals, Drive components, Sensors and electrical, Engine components, Filters, Bearings, Turbocharging, Pistons and liners and related service references. We do not treat a part number as interchangeable until the engine serial number, installation position, and any superseded reference have been checked.

Part Numbers & Selection Checks

These numbers have part-specific identification checks. Catalog measurements, where shown, still require confirmation for the quoted item and engine.

What We Verify Before Quoting

Common RFQ Scenarios

• Preventive maintenance list by engine serial number
• Major overhaul quotation by category
• Urgent downtime replacement for one confirmed part number
• Fleet replenishment across several engines in the same series

For mixed lists, send the spreadsheet as-is. We return line-by-line availability, replacement notes, and practical shipping options instead of a generic catalog reply.
