0071548102 Three-Phase Generator. Listed in MTU 183 catalog references; confirm installation and current availability before ordering.
Check 0071548102 availability: Start with 0071548102 and the quantity. Add an engine serial number or a photo of the old Three-Phase Generator if available; we will follow up on any missing details.
0071548102 Specification
About 0071548102 - Three-Phase Generator
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.

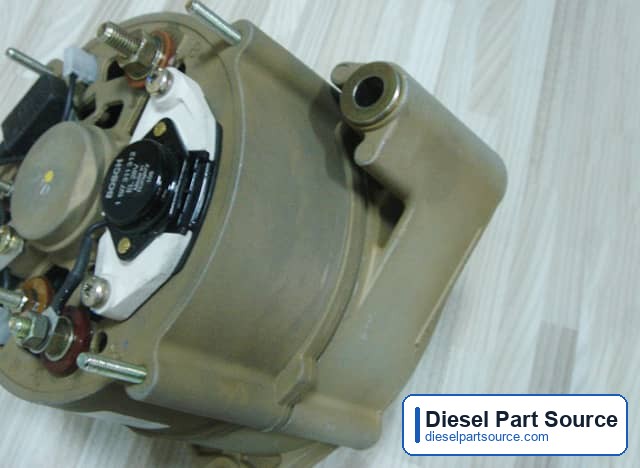

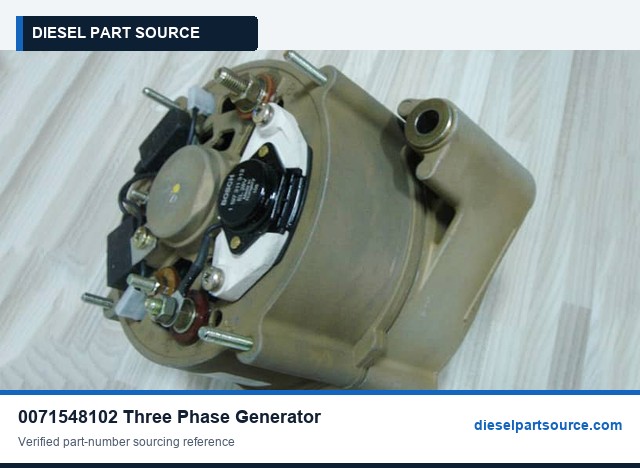

0071548102 is a three-phase generator catalogued for MTU 183 engines. The catalog unit weight is 6.110 kg, which we use to estimate freight before quoting.
Technical Notes: Starting and charging
Starters, alternators, and charging generators are installation-specific electrical assemblies. Units that look alike can differ in system voltage, rotation direction, mounting flange, pinion or pulley arrangement, terminal position, output rating, and environmental protection. A visually similar unit should never be treated as interchangeable on appearance alone.
When This Type of Part Is Usually Replaced
- the unit fails bench testing, or produces an abnormal noise or smell under load
- charging output is low or unstable at rated engine speed
- the starter drags, clicks, or engages intermittently
Checks Before Ordering
- Send the complete unit label and the engine model and serial number
- Confirm voltage, rotation, mounting flange, pinion or pulley arrangement, and terminal layout
- Photograph the connector and pulley end when the label is worn or missing
Engine Catalog References
0071548102 is listed for 8 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 183 TE52 | 8 | V | marine | build 2 |
| 8V 183 AA51 | 8 | V | marine | build 1 |
| 6R 183 TD13H | 6 | In-line | — | build 3 |
| 12V 183 TE93 | 12 | V | marine | build 3 |
| 12V 183 TE52 | 12 | V | marine | build 2 |
| 12V 183 TD13 | 12 | V | — | build 3 |
| 12V 183 TB32 | 12 | V | generator sets | build 2 |
| 12V 183 TA12 | 12 | V | — | build 2 |
How Each Model Code Reads
- 8V 183 TE52: 8 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 5 (marine), build 2
- 8V 183 AA51: 8 cylinders in V arrangement, Series 183, charging and cooling code AA, application group 5 (marine), build 1
- 6R 183 TD13H: 6 cylinders in line, Series 183, turbocharged, charge-air code TD, application group 1, build 3, rating variant H
- 12V 183 TE93: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 9 (marine), build 3
- 12V 183 TE52: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 5 (marine), build 2
- 12V 183 TD13: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TD, application group 1, build 3
- 12V 183 TB32: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TB, application group 3 (generator sets), build 2
- 12V 183 TA12: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TA, application group 1, build 2
Full parts list for this model family: MTU 183 AA51 to TE93 Parts List
Engine-series references do not confirm every installation. Final fitment of 0071548102 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 0031546602 | Reference only; direction unconfirmed |
| 0071547502 | Reference only; direction unconfirmed |
Common Applications
- Marine service
- Industrial maintenance
- Power generation
- Rail traction
Information to Send for Quotation
- Part number: 0071548102
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 0071548102, confirm engine model, serial number, required quantity, and destination before ordering.
- If 0071548102 markings or replacement status are unclear, send old-part photos or nameplate details.
