05132155 sealing ring with catalog successor 0002034480. Preserve the leading zero and confirm dimensions and sealing position.
Check 05132155 availability: Start with 05132155 and the quantity. Add an engine serial number or a photo of the old Sealing Ring if available; we will follow up on any missing details.
05132155 Specification
Supply & Availability
- Stock
- Availability confirmed after inquiry
- Lead time
- Stock or sourcing route confirmed after inquiry
Availability is confirmed for each quotation and may change before order release.
05132155 Quotation Scope
- Requested contents
- Individual sealing ring; preserve leading zero and check successor.
- Evidence to request
- Position 250, dimensional convention, units and material.
- Supplier confirmation
- Current stock, exact supplied condition and unit-specific documents are not confirmed by this catalog record. Request them with the quotation.
- Quote acceptance
- Offered number, quantity, included items, condition, price, lead time and delivery terms must be agreed before order release.

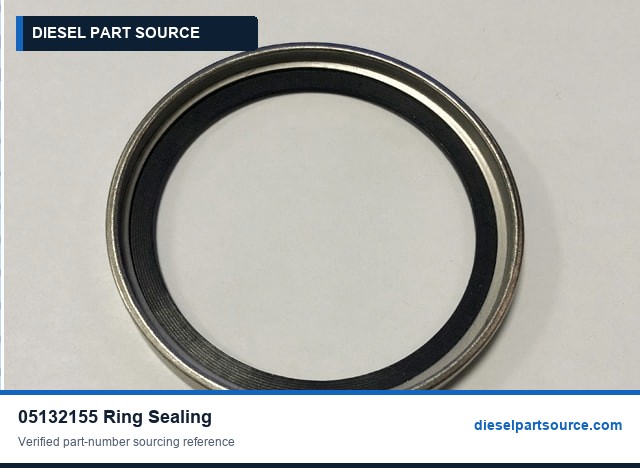

About 05132155 - Sealing Ring
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
The catalog lists 05132155 with marking 57,76 X 67,5 X 6,4 and identifies 0002034480 as a later number. Leading-zero and prefixed references should be retained exactly as marked. Confirm material and installation details before approving the successor.
Technical Notes: Gaskets and seals
Gaskets, O-rings, and sealing rings keep oil, coolant, fuel, charge air, and exhaust gas in their own circuits. On high-speed MTU engines they work against high combustion pressures and frequent thermal cycling, so a seal that looks intact can still have lost its elasticity or set to the shape of the old joint.
When This Type of Part Is Usually Replaced
- a joint has been opened for inspection or repair, even if the old seal looks usable
- oil or coolant weeping appears at a cover, pipe flange, or housing
- a coolant test shows oil contamination or combustion gas in the cooling system
Checks Before Ordering
- Material matters: fuel-system and coolant-system O-rings of the same size can use different elastomers
- Superseded gasket numbers often reflect a material or thickness change, so mixed old and new gaskets on one joint should be avoided
- Order the complete set for a joint rather than single pieces when the cover or head comes off
Technical Data Status
Published catalog details help identify this part, but they are not a controlled drawing for the item offered. Measurements that are not shown here still need confirmation before substitution or order.
- Confirm inside/outside diameters, thickness, material, and installation position against the offered reference.
Request a datasheet or measurement check
Engine Catalog References
05132155 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of 05132155 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 0002034480 | Listed later number |
| X59599100127 | Reference only; direction unconfirmed |
| 0002033580 | Reference only; direction unconfirmed |
| 5132155 | Reference only; direction unconfirmed |
| XP57520200308 | Reference only; direction unconfirmed |
| 05132155M | Reference only; direction unconfirmed |
| SUA76537 | Reference only; direction unconfirmed |
Parts in the Same Catalog Drawing
MTU 4000 thermostat-housing reference. Drawing positions are identification references, not a confirmed kit or a list of items included with this part. Check the engine serial number and drawing revision before ordering.
| Position | Part number | Description |
|---|---|---|
| 200 | X52420300037 | Thermal Actuator |
| 550 | 700429072000 | O-Ring |
| 1350 | 5272030080 | Gasket |
| 1550 | 700429070000 | O-Ring |
All assembly group on this page are collected in the assembly & BOM reference index.
Common Applications
- Overhaul kits
- Marine service
- Industrial maintenance
- Generator repair
Information to Send for Quotation
- Part number: 05132155
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
05132155 FAQ
Does 0002034480 supersede 05132155?
The imported catalog lists it as the later number. Check the engine application and offered ring before ordering; do not assume all similar reference strings describe the same supply.
What replaces 05132155?
Catalog history lists 0002034480 as the later number. We check whether 0002034480 can be fitted on its own or needs related parts changed, and quote 05132155 where it is still available and preferred.
Verification Notes
- Catalog references and engine-series listings require confirmation against the full engine serial number before order.
