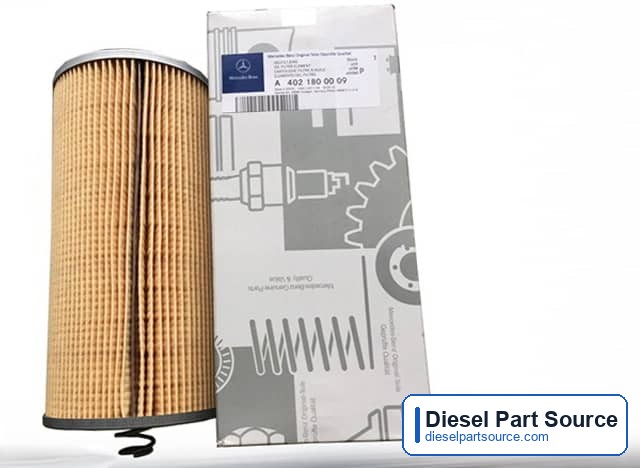

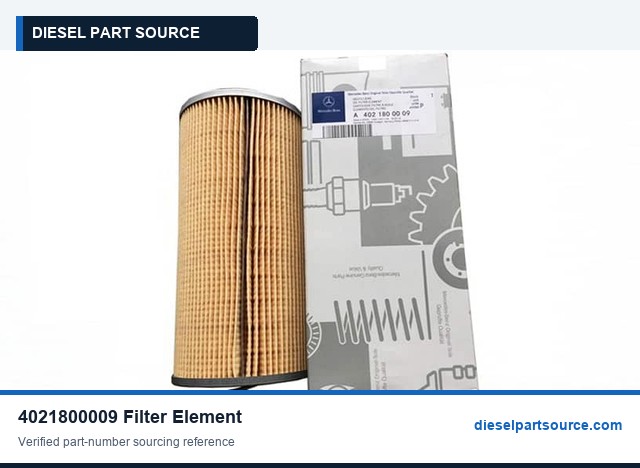

4021800009 Filter Element. Listed in MTU 183 catalog references; confirm installation and current availability before ordering.
Check 4021800009 availability: Start with 4021800009 and the quantity. Add an engine serial number or a photo of the old Filter Element if available; we will follow up on any missing details.
4021800009 Specification
About 4021800009 - Filter Element
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
4021800009 is a filter element catalogued for MTU 183 engines. The catalog unit weight is 0.750 kg, which we use to estimate freight before quoting.
Technical Notes: Filters
Oil, fuel, and air filters protect the most expensive parts of the engine: bearings, injectors, and turbochargers. MTU specifies filter fineness and capacity for each series, and fuel filtration in particular is matched to the injection system, because common-rail injectors tolerate far less contamination than older pump-and-nozzle systems.
When This Type of Part Is Usually Replaced
- the scheduled service interval in the maintenance schedule is reached
- the differential-pressure indicator or a filter alarm signals restriction
- fuel contamination, water in fuel, or a dust ingress event has occurred
Checks Before Ordering
- Replace primary and secondary fuel filters together unless the maintenance schedule says otherwise
- Easy-change and spin-on versions of a filter are not always interchangeable on the same housing
- Keep one complete filter set per engine on board or on site for unplanned changes
Engine Catalog References
4021800009 is listed for 8 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 183 TE52 | 8 | V | marine | build 2 |
| 8V 183 AA51 | 8 | V | marine | build 1 |
| 6R 183 TD13H | 6 | In-line | — | build 3 |
| 12V 183 TE93 | 12 | V | marine | build 3 |
| 12V 183 TE52 | 12 | V | marine | build 2 |
| 12V 183 TD13 | 12 | V | — | build 3 |
| 12V 183 TB32 | 12 | V | generator sets | build 2 |
| 12V 183 TA12 | 12 | V | — | build 2 |
How Each Model Code Reads
- 8V 183 TE52: 8 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 5 (marine), build 2
- 8V 183 AA51: 8 cylinders in V arrangement, Series 183, charging and cooling code AA, application group 5 (marine), build 1
- 6R 183 TD13H: 6 cylinders in line, Series 183, turbocharged, charge-air code TD, application group 1, build 3, rating variant H
- 12V 183 TE93: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 9 (marine), build 3
- 12V 183 TE52: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TE, application group 5 (marine), build 2
- 12V 183 TD13: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TD, application group 1, build 3
- 12V 183 TB32: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TB, application group 3 (generator sets), build 2
- 12V 183 TA12: 12 cylinders in V arrangement, Series 183, turbocharged, charge-air code TA, application group 1, build 2
Full parts list for this model family: MTU 183 AA51 to TE93 Parts List
Engine-series references do not confirm every installation. Final fitment of 4021800009 depends on the full engine serial number and assembly position.
Usually Ordered with Filter Element
Filters are changed with their housing seals, often as a full filter set. These MTU 183 references are commonly checked in the same job; each still needs its own fitment check.
- 0000983080 Gasket
- 0049976548 O-Ring
- 007603014104 Sealing Ring
- 0170942502 Air Filter
- 4420160420 Cylinder Head Gasket
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 51.055504-0078 | Reference only; direction unconfirmed |
| 51.055504-0069 | Reference only; direction unconfirmed |
| 0011840625 | Reference only; direction unconfirmed |
| 4031840025 | Reference only; direction unconfirmed |
| 4021800009/67 | Reference only; direction unconfirmed |
Common Applications
- Scheduled maintenance
- Fleet service programs
- Marine engine rooms
- Generator servicing
Information to Send for Quotation
- Part number: 4021800009
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 4021800009, confirm engine model, serial number, required quantity, and destination before ordering.
- If 4021800009 markings or replacement status are unclear, send old-part photos or nameplate details.
