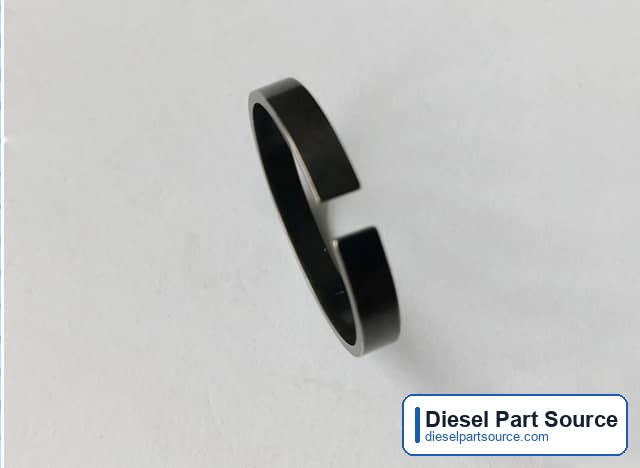

5100850160 Piston Ring. Listed in MTU 183 catalog references; confirm installation and current availability before ordering.
Check 5100850160 availability: Start with 5100850160 and the quantity. Add an engine serial number or a photo of the old Piston Ring if available; we will follow up on any missing details.
5100850160 Specification
About 5100850160 - Piston Ring
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5100850160 is a piston ring catalogued for MTU 183 engines. The catalog unit weight is 0.001 kg, which we use to estimate freight before quoting.
Technical Notes: Pistons and liners
Pistons, rings, and wet cylinder liners form the combustion chamber and carry the highest thermal loads in the engine. They are usually replaced during a major overhaul, and liner protrusion and size grades have to be checked so the cylinder head seals correctly.
When This Type of Part Is Usually Replaced
- oil consumption or blow-by rises beyond the expected level
- borescope inspection shows liner scoring, bore polishing, or ring damage
- liner cavitation is found on the coolant side
Checks Before Ordering
- Order liners with their sealing rings, and pistons with complete ring sets
- Size grades and weight classes must be matched within one engine
- Measurements from the inspection record decide which grade to order
Engine Catalog References
5100850160 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 396 TC14 | 8 | V | — | build 4 |
| 8V 396 TB14 | 8 | V | — | build 4 |
| 8V 396 TE14 | 8 | V | — | build 4 |
| 8V 396 TC34 | 8 | V | generator sets | build 4 |
| 8V 396 TC34D | 8 | V | generator sets | build 4 |
| 8V 396 TC34R | 8 | V | generator sets | build 4 |
| 8V 396 TB34 | 8 | V | generator sets | build 4 |
| 8V 396 TB34D | 8 | V | generator sets | build 4 |
| 8V 396 TB34R | 8 | V | generator sets | build 4 |
| 8V 396 TE34 | 8 | V | generator sets | build 4 |
How Each Model Code Reads
- 8V 396 TC14: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TC, application group 1, build 4
- 8V 396 TB14: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TB, application group 1, build 4
- 8V 396 TE14: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 1, build 4
- 8V 396 TC34: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TC, application group 3 (generator sets), build 4
- 8V 396 TC34D: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TC, application group 3 (generator sets), build 4, rating variant D
- 8V 396 TC34R: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TC, application group 3 (generator sets), build 4, rating variant R
- 8V 396 TB34: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TB, application group 3 (generator sets), build 4
- 8V 396 TB34D: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TB, application group 3 (generator sets), build 4, rating variant D
- 8V 396 TB34R: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TB, application group 3 (generator sets), build 4, rating variant R
- 8V 396 TE34: 8 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 3 (generator sets), build 4
Engine-series references do not confirm every installation. Final fitment of 5100850160 depends on the full engine serial number and assembly position.
Usually Ordered with Piston Ring
Ring sets are replaced complete and checked against liner wear. These MTU 183 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| XT1210100105 | Reference only; direction unconfirmed |
Common Applications
- Major overhaul
- In-frame rebuild
- Marine engine service
- Industrial engine repair
Information to Send for Quotation
- Part number: 5100850160
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 5100850160, confirm engine model, serial number, required quantity, and destination before ordering.
- If 5100850160 markings or replacement status are unclear, send old-part photos or nameplate details.
