5110200412 Thrust Bearing. Listed in MTU 956, MTU 1163 catalog references; confirm installation and current availability before ordering.
Check 5110200412 availability: Start with 5110200412 and the quantity. Add an engine serial number or a photo of the old Thrust Bearing if available; we will follow up on any missing details.
5110200412 Specification
About 5110200412 - Thrust Bearing
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.

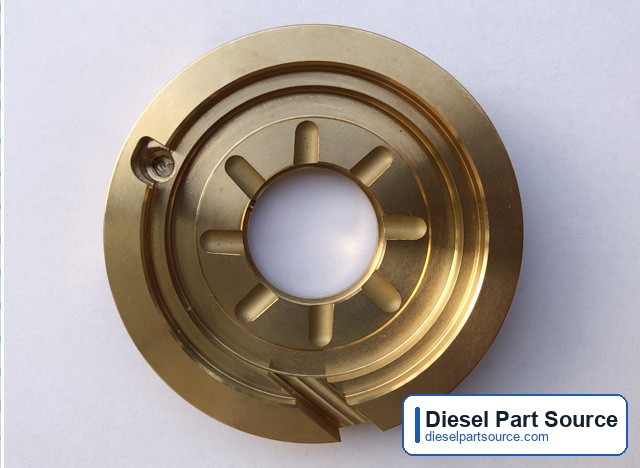

5110200412 is a thrust bearing catalogued for MTU 956 and MTU 1163 engines. It is the later number for 5110200110, 5110200510, 5110200212, 5110200210, so lists quoting those numbers are normally supplied as 5110200412. The catalog unit weight is 0.211 kg, which we use to estimate freight before quoting.
Technical Notes: Bearings
Main and connecting-rod bearings support the crankshaft and run on a thin oil film. MTU bearings are supplied in size grades to suit original and reground crankshafts, so the size marked on the old shells or on the crankshaft record has to be known before ordering.
When This Type of Part Is Usually Replaced
- the engine reaches its major-overhaul interval
- oil analysis or filter inspection shows bearing material
- oil pressure loss or knocking points to bearing wear
Checks Before Ordering
- Confirm the size grade (for example size 0 or an undersize) from the old shells or crankshaft measurements
- Replace bearings as complete sets per crankshaft journal type
- Thrust bearings and washers should be checked together with the main bearings
Engine Catalog References
5110200412 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 1163 TB73L | 16 | V | marine | build 3 |
| 20V 1163 TB73 | 20 | V | marine | build 3 |
| 20V 1163 TB73L | 20 | V | marine | build 3 |
| 12V 1163 TB93 | 12 | V | marine | build 3 |
| 16V 1163 TB93 | 16 | V | marine | build 3 |
| 20V 1163 TB93 | 20 | V | marine | build 3 |
| 16V 1163 TB76 | 16 | V | marine | build 6 |
| 16V 1163 TB76L | 16 | V | marine | build 6 |
| 16V 1163 TB82 | 16 | V | — | build 2 |
| 20V 1163 TB82 | 20 | V | — | build 2 |
How Each Model Code Reads
- 16V 1163 TB73L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 20V 1163 TB73: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3
- 20V 1163 TB73L: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 12V 1163 TB93: 12 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB93: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 1163 TB93: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB76: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6
- 16V 1163 TB76L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6, increased rating (L)
- 16V 1163 TB82: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
- 20V 1163 TB82: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
Full parts list for this model family: MTU 1163 TB73 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 5110200412 depends on the full engine serial number and assembly position.
Usually Ordered with Thrust Bearing
Main and thrust bearings are checked and replaced as a set per journal type. These MTU 956, MTU 1163 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5110200110 | Listed earlier number |
| 5110200510 | Listed earlier number |
| 5110200212 | Listed earlier number |
| 5110200210 | Listed earlier number |
Common Applications
- Engine overhaul
- Crankshaft service
- Marine and industrial engines
Information to Send for Quotation
- Part number: 5110200412
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
5110200412 FAQ
Is 5110200110 replaced by 5110200412?
Catalog history lists 5110200412 as the later number for 5110200110, 5110200510, 5110200212, 5110200210. Orders quoting those numbers are normally supplied as 5110200412; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- For 5110200412, confirm engine model, serial number, required quantity, and destination before ordering.
- If 5110200412 markings or replacement status are unclear, send old-part photos or nameplate details.
