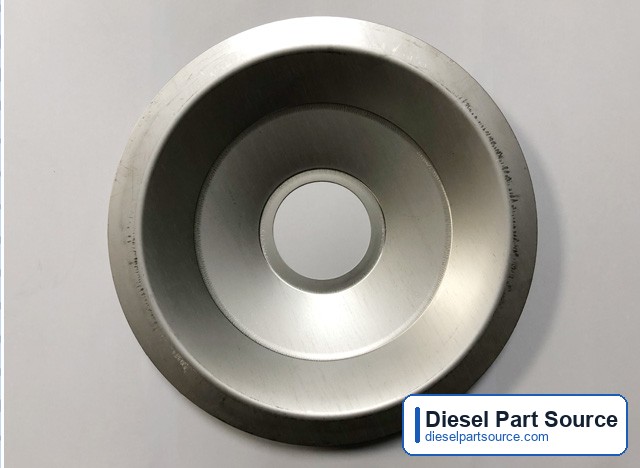

5120820226 Heat Shield. Listed in MTU 956, MTU 1163 catalog references; confirm installation and current availability before ordering.
Check 5120820226 availability: Start with 5120820226 and the quantity. Add an engine serial number or a photo of the old Heat Shield if available; we will follow up on any missing details.
5120820226 Specification
About 5120820226 - Heat Shield
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5120820226 is a heat shield catalogued for MTU 956 and MTU 1163 engines. The catalog unit weight is 0.160 kg, which we use to estimate freight before quoting.
Technical Notes: Engine components
This group covers structural and miscellaneous engine parts, from covers and housings to brackets, pipes, and fittings, as well as special tools used during maintenance. Fitment depends heavily on the exact engine version and installation, so the engine serial number and catalog position are essential.
When This Type of Part Is Usually Replaced
- the part is cracked, distorted, or damaged during removal
- a modification or later standard requires the updated part
- an overhaul or repair procedure lists the item as replace-on-removal
Checks Before Ordering
- Send a photo of the part in its installed position if the catalog reference is unclear
- Housings and covers may differ between left and right engine banks
- Check whether related seals or fasteners are needed with the part
Engine Catalog References
5120820226 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 1163 TB73L | 16 | V | marine | build 3 |
| 20V 1163 TB73 | 20 | V | marine | build 3 |
| 20V 1163 TB73L | 20 | V | marine | build 3 |
| 12V 1163 TB93 | 12 | V | marine | build 3 |
| 16V 1163 TB93 | 16 | V | marine | build 3 |
| 20V 1163 TB93 | 20 | V | marine | build 3 |
| 16V 1163 TB76 | 16 | V | marine | build 6 |
| 16V 1163 TB76L | 16 | V | marine | build 6 |
| 16V 1163 TB82 | 16 | V | — | build 2 |
| 20V 1163 TB82 | 20 | V | — | build 2 |
How Each Model Code Reads
- 16V 1163 TB73L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 20V 1163 TB73: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3
- 20V 1163 TB73L: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 12V 1163 TB93: 12 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB93: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 1163 TB93: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB76: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6
- 16V 1163 TB76L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6, increased rating (L)
- 16V 1163 TB82: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
- 20V 1163 TB82: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
Full parts list for this model family: MTU 1163 TB73 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 5120820226 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
5120820226 has no public alternative number listed in our current data. We still check old-part photos, engine serial number, and catalog position for supersession before quotation.
Common Applications
- Marine service
- Industrial maintenance
- Power generation
- Rail traction
Information to Send for Quotation
- Part number: 5120820226
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 5120820226, confirm engine model, serial number, required quantity, and destination before ordering.
- If 5120820226 markings or replacement status are unclear, send old-part photos or nameplate details.
