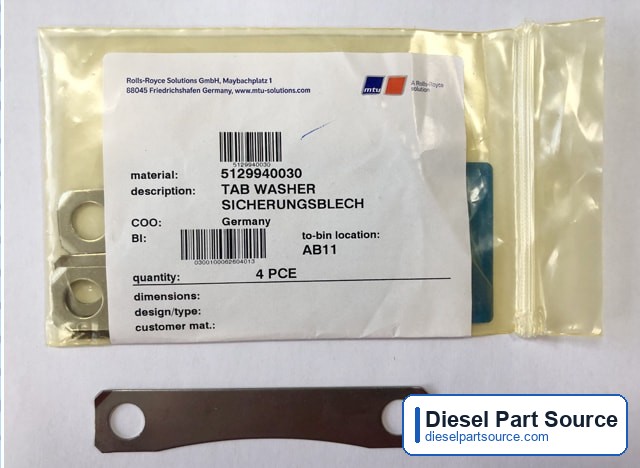

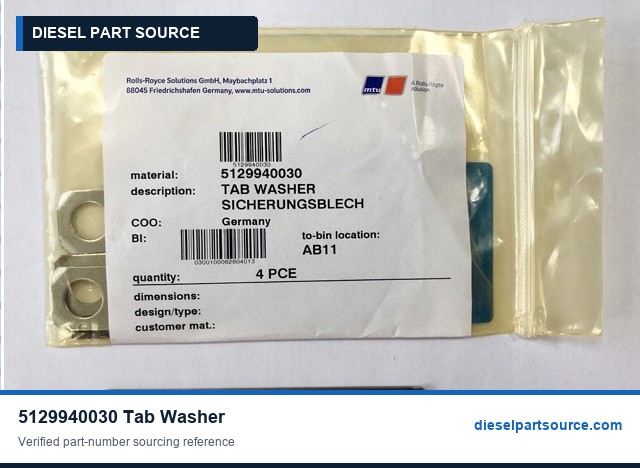

5129940030 Tab Washer. Listed in MTU 595 catalog references; confirm installation and current availability before ordering.
Check 5129940030 availability: Start with 5129940030 and the quantity. Add an engine serial number or a photo of the old Tab Washer if available; we will follow up on any missing details.
5129940030 Specification
About 5129940030 - Tab Washer
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5129940030 is a tab washer catalogued for MTU 595 engines. The catalog unit weight is 0.009 kg, which we use to estimate freight before quoting.
Technical Notes: Drive components
Gears, shafts, couplings, belts, fasteners, and locking parts transmit drive to pumps, camshafts, and auxiliaries and hold assemblies together. Many of these items are inexpensive but critical: a missing tab washer or a reused stretch bolt can cause a far larger failure.
When This Type of Part Is Usually Replaced
- locking elements such as tab washers or self-locking nuts have been removed
- gear teeth, splines, or keyways show wear or pitting
- belts show cracks, glazing, or incorrect tension after adjustment
Checks Before Ordering
- Use new fasteners where the maintenance documentation specifies single use
- Order belts as matched sets on multi-belt drives
- Check slotted nuts, washers, and pins together with the component they secure
Engine Catalog References
5129940030 is listed for 9 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 595 TE70 | 16 | V | marine | build 0 |
| 16V 595 TE70L | 16 | V | marine | build 0 |
| 12V 595 TE90 | 12 | V | marine | build 0 |
| 16V 595 TE90 | 16 | V | marine | build 0 |
| 16V 595 TE60 | 16 | V | marine | build 0 |
| 16V 595 TE80 | 16 | V | — | build 0 |
| 16V 595 TE50 | 16 | V | marine | build 0 |
| 12V 595 TC10 | 12 | V | — | build 0 |
| 16V 595 TC10 | 16 | V | — | build 0 |
How Each Model Code Reads
- 16V 595 TE70: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 7 (marine), build 0
- 16V 595 TE70L: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 7 (marine), build 0, increased rating (L)
- 12V 595 TE90: 12 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 9 (marine), build 0
- 16V 595 TE90: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 9 (marine), build 0
- 16V 595 TE60: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 6 (marine), build 0
- 16V 595 TE80: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 8, build 0
- 16V 595 TE50: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 5 (marine), build 0
- 12V 595 TC10: 12 cylinders in V arrangement, Series 595, turbocharged, charge-air code TC, application group 1, build 0
- 16V 595 TC10: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TC, application group 1, build 0
Full parts list for this model family: MTU 595 TC10 to TE90 Parts List
Engine-series references do not confirm every installation. Final fitment of 5129940030 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
5129940030 has no public alternative number listed in our current data. We still check old-part photos, engine serial number, and catalog position for supersession before quotation.
Common Applications
- Engine assembly
- Marine propulsion
- Industrial drives
- Generator sets
Information to Send for Quotation
- Part number: 5129940030
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 5129940030, confirm engine model, serial number, required quantity, and destination before ordering.
- If 5129940030 markings or replacement status are unclear, send old-part photos or nameplate details.
