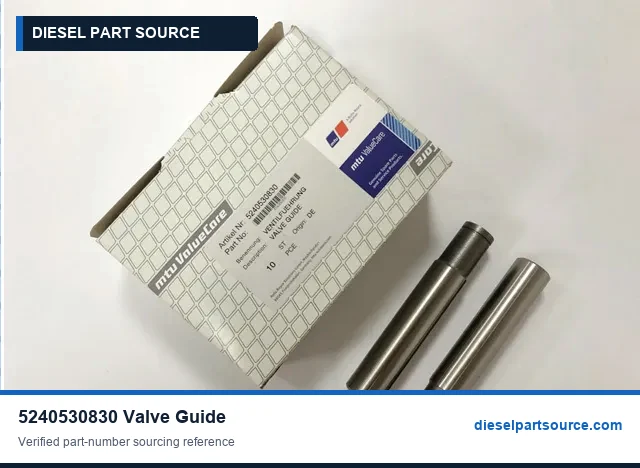

5240530830 MTU 4000 valve guide. Catalog history lists 5240530530 and X52404100299 as earlier references.
Check 5240530830 availability: Start with 5240530830 and the quantity. Add an engine serial number or a photo of the old Valve Guide if available; we will follow up on any missing details.
5240530830 Specification
Supply & Availability
- Stock
- Availability confirmed after inquiry
- Lead time
- Stock or sourcing route confirmed after inquiry
Availability is confirmed for each quotation and may change before order release.
5240530830 Quotation Scope
- Requested contents
- Valve guide; machining/finishing requirement stated.
- Evidence to request
- Applicable head/valve and drawing explaining 19.00 R6 H7 marking.
- Supplier confirmation
- Current stock, exact supplied condition and unit-specific documents are not confirmed by this catalog record. Request them with the quotation.
- Quote acceptance
- Offered number, quantity, included items, condition, price, lead time and delivery terms must be agreed before order release.
About 5240530830 - Valve Guide
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
The 5240530830 catalog marking includes 19.00 R6 H7 and a finished-machining description. Do not treat those tokens as a complete dimensional drawing. Confirm the mating valve, cylinder-head bore, and any required finishing work for the offered guide.
Technical Notes: Valve train
Valves, guides, seats, springs, and rocker components control gas exchange in the cylinder head. Wear in the valve train shows up as compression loss, rising exhaust temperatures, or changes in valve clearance between service intervals.
When This Type of Part Is Usually Replaced
- valve clearance changes quickly between adjustments
- compression is low on one or more cylinders
- valves or seats show burning, pitting, or recession during head overhaul
Checks Before Ordering
- Valve guides and seats are matched to the valve stem and head; order them per cylinder head
- Replace valve stem seals whenever valves are removed
- Inner and outer valve springs are usually separate part numbers
Technical Data Status
Published catalog details help identify this part, but they are not a controlled drawing for the item offered. Measurements that are not shown here still need confirmation before substitution or order.
- Catalog marking: FERTIG BEARBEITET, 19.00 R6 H7. Confirm which dimensions and tolerances it describes.
Request a datasheet or measurement check
Engine Catalog References
5240530830 is listed for 11 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 4000 M63 | 8 | V | marine | subgroup 6, build 3 |
| 16V 4000 M53R | 16 | V | marine | subgroup 5, build 3 |
| 12V 4000 M64 | 12 | V | marine | subgroup 6, build 4 |
| 12V 4000 M65R | 12 | V | marine | subgroup 6, build 5 |
| 16V 4000 M54 | 16 | V | marine | subgroup 5, build 4 |
| 16V 4000 M65R | 16 | V | marine | subgroup 6, build 5 |
| 20V 4000 M65L | 20 | V | marine | subgroup 6, build 5 |
| 20V 4000 M73 | 20 | V | marine | subgroup 7, build 3 |
| 16V 4000 M93L | 16 | V | marine | subgroup 9, build 3 |
| 20V 4000 M73L | 20 | V | marine | subgroup 7, build 3 |
| 20V 4000 M93 | 20 | V | marine | subgroup 9, build 3 |
How Each Model Code Reads
- 8V 4000 M63: 8 cylinders in V arrangement, Series 4000, marine application (M), subgroup 6, build generation 3
- 16V 4000 M53R: 16 cylinders in V arrangement, Series 4000, marine application (M), subgroup 5, build generation 3, rating variant R
- 12V 4000 M64: 12 cylinders in V arrangement, Series 4000, marine application (M), subgroup 6, build generation 4
- 12V 4000 M65R: 12 cylinders in V arrangement, Series 4000, marine application (M), subgroup 6, build generation 5, rating variant R
- 16V 4000 M54: 16 cylinders in V arrangement, Series 4000, marine application (M), subgroup 5, build generation 4
- 16V 4000 M65R: 16 cylinders in V arrangement, Series 4000, marine application (M), subgroup 6, build generation 5, rating variant R
- 20V 4000 M65L: 20 cylinders in V arrangement, Series 4000, marine application (M), subgroup 6, build generation 5, increased rating (L)
- 20V 4000 M73: 20 cylinders in V arrangement, Series 4000, marine application (M), subgroup 7, build generation 3
- 16V 4000 M93L: 16 cylinders in V arrangement, Series 4000, marine application (M), subgroup 9, build generation 3, increased rating (L)
- 20V 4000 M73L: 20 cylinders in V arrangement, Series 4000, marine application (M), subgroup 7, build generation 3, increased rating (L)
- 20V 4000 M93: 20 cylinders in V arrangement, Series 4000, marine application (M), subgroup 9, build generation 3
Full parts list for these engines: MTU 8V 4000 M63 Parts List, MTU 4000 M53R to M93L Parts List
Engine-series references do not confirm every installation. Final fitment of 5240530830 depends on the full engine serial number and assembly position.
Usually Ordered with Valve Guide
Valve-train parts are serviced together per cylinder head. These MTU 4000 references are commonly checked in the same job; each still needs its own fitment check.
- 5240530120 Outer Valve Spring
- 5240530122 Inner Valve Spring
- 5240530805 Exhaust Valve
- 5240531101 Inlet Valve
- X52404200010 Valve Guide
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5240530530 | Listed earlier number |
| X52404100299 | Listed earlier number |
Common Applications
- Cylinder-head overhaul
- Marine engine maintenance
- Power generation service
Information to Send for Quotation
- Exact part number: 5240530830
- Part name or assembly position: Valve Guide
- Engine model / series: MTU 4000
- Engine serial number from nameplate
- Old-part photo showing number, connector, port, or size marking
- Required quantity and whether partial shipment is acceptable
- Destination country, delivery deadline, and preferred shipping method
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
5240530830 FAQ
Can I order 5240530830 using X52404100299?
The catalog identifies X52404100299 as an earlier reference. Include the old number and engine serial number so the offered guide and installation requirements can be confirmed.
Is 5240530530 replaced by 5240530830?
Catalog history lists 5240530830 as the later number for 5240530530, X52404100299. Orders quoting those numbers are normally supplied as 5240530830; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
