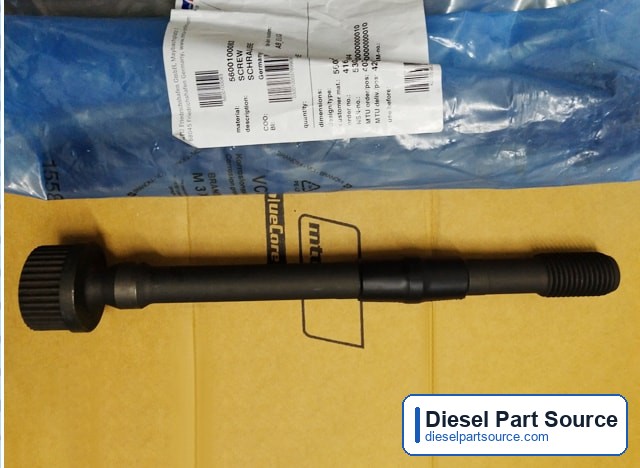

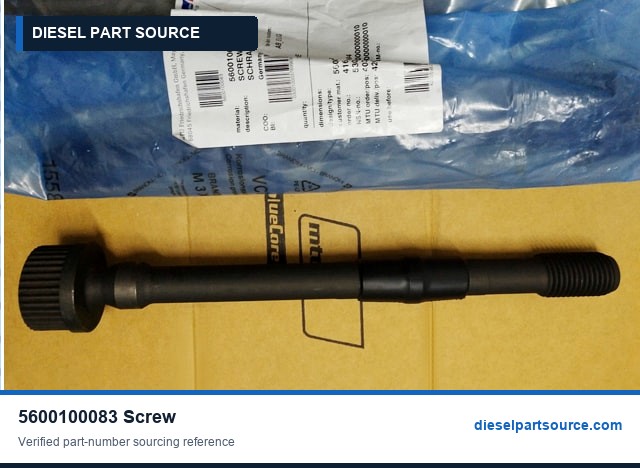

5600100083 Screw. Listed in MTU 538 catalog references; confirm installation and current availability before ordering.
Check 5600100083 availability: Start with 5600100083 and the quantity. Add an engine serial number or a photo of the old Screw if available; we will follow up on any missing details.
5600100083 Specification
About 5600100083 - Screw
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5600100083 is a screw catalogued for MTU 538 engines. The catalog unit weight is 0.732 kg, which we use to estimate freight before quoting.
Technical Notes: Drive components
Gears, shafts, couplings, belts, fasteners, and locking parts transmit drive to pumps, camshafts, and auxiliaries and hold assemblies together. Many of these items are inexpensive but critical: a missing tab washer or a reused stretch bolt can cause a far larger failure.
When This Type of Part Is Usually Replaced
- locking elements such as tab washers or self-locking nuts have been removed
- gear teeth, splines, or keyways show wear or pitting
- belts show cracks, glazing, or incorrect tension after adjustment
Checks Before Ordering
- Use new fasteners where the maintenance documentation specifies single use
- Order belts as matched sets on multi-belt drives
- Check slotted nuts, washers, and pins together with the component they secure
Engine Catalog References
5600100083 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 12V 538 TB92 | 12 | V | marine | build 2 |
| 20V 538 TB92 | 20 | V | marine | build 2 |
| 16V 538 TB93 | 16 | V | marine | build 3 |
| 20V 538 TB93 | 20 | V | marine | build 3 |
| 12V 538 TB8 | 12 | V | — | build TB |
| 12V 538 TB9 | 12 | V | — | build TB |
| 20V 538 TB1 | 20 | V | — | build TB |
| 20V 538 TB6 | 20 | V | — | build TB |
| 20V 538 TB7 | 20 | V | — | build TB |
| 16V 538 TB9 | 16 | V | — | build TB |
How Each Model Code Reads
- 12V 538 TB92: 12 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 20V 538 TB92: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 16V 538 TB93: 16 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 538 TB93: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 12V 538 TB8: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 12V 538 TB9: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB1: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB6: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB7: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 16V 538 TB9: 16 cylinders in V arrangement, Series 538, single-digit build code TB
Full parts list for this model family: MTU 538 TB1 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 5600100083 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 135C05704/1 | Reference only; direction unconfirmed |
| 135C05001/1 | Reference only; direction unconfirmed |
| 135C05022/1 | Reference only; direction unconfirmed |
Common Applications
- Engine assembly
- Marine propulsion
- Industrial drives
- Generator sets
Information to Send for Quotation
- Part number: 5600100083
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For 5600100083, confirm engine model, serial number, required quantity, and destination before ordering.
- If 5600100083 markings or replacement status are unclear, send old-part photos or nameplate details.
