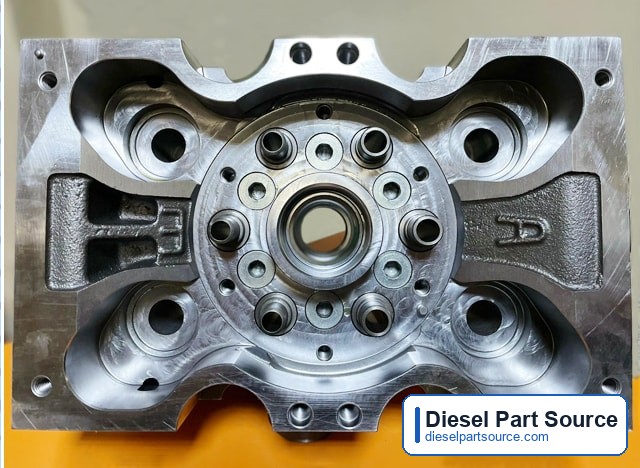

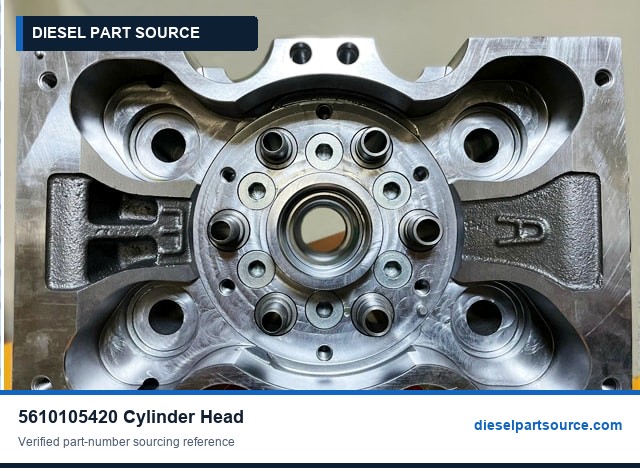

5610105420 cylinder head listed for MTU 538. Specify bare head versus assembled head and request inspection documentation.
Check 5610105420 availability: Start with 5610105420 and the quantity. Add an engine serial number or a photo of the old Cylinder Head if available; we will follow up on any missing details.
5610105420 Specification
Supply & Availability
- Stock
- Availability confirmed after inquiry
- Lead time
- Stock or sourcing route confirmed after inquiry
Availability is confirmed for each quotation and may change before order release.
5610105420 Quotation Scope
- Requested contents
- MTU 538 cylinder head; bare versus assembled contents itemized.
- Evidence to request
- Casting/assembly label and available inspection/test records.
- Supplier confirmation
- Current stock, exact supplied condition and unit-specific documents are not confirmed by this catalog record. Request them with the quotation.
- Quote acceptance
- Offered number, quantity, included items, condition, price, lead time and delivery terms must be agreed before order release.
About 5610105420 - Cylinder Head
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
The 5610105420 record identifies a cylinder head in the MTU 538 family. Its long catalog reference list does not mean every head assembly has the same configuration. Identify the casting/assembly marking and whether valves, guides, seats, and other components are required.
Technical Data Status
Published catalog details help identify this part, but they are not a controlled drawing for the item offered. Measurements that are not shown here still need confirmation before substitution or order.
- Confirm complete engine designation, head assembly scope, casting marking, and available inspection or test records.
Request a datasheet or measurement check
Engine Catalog References
5610105420 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 12V 538 TB92 | 12 | V | marine | build 2 |
| 20V 538 TB92 | 20 | V | marine | build 2 |
| 16V 538 TB93 | 16 | V | marine | build 3 |
| 20V 538 TB93 | 20 | V | marine | build 3 |
| 12V 538 TB8 | 12 | V | — | build TB |
| 12V 538 TB9 | 12 | V | — | build TB |
| 20V 538 TB1 | 20 | V | — | build TB |
| 20V 538 TB6 | 20 | V | — | build TB |
| 20V 538 TB7 | 20 | V | — | build TB |
| 16V 538 TB9 | 16 | V | — | build TB |
How Each Model Code Reads
- 12V 538 TB92: 12 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 20V 538 TB92: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 16V 538 TB93: 16 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 538 TB93: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 12V 538 TB8: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 12V 538 TB9: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB1: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB6: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB7: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 16V 538 TB9: 16 cylinders in V arrangement, Series 538, single-digit build code TB
Full parts list for this model family: MTU 538 TB1 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 5610105420 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 135C01510/3 | Reference only; direction unconfirmed |
| 135C01737/1 | Reference only; direction unconfirmed |
| 135C01735/3 | Reference only; direction unconfirmed |
| 5610160201 | Reference only; direction unconfirmed |
| 5610100620 | Reference only; direction unconfirmed |
| 5610101020 | Reference only; direction unconfirmed |
| 5610102720 | Reference only; direction unconfirmed |
| 5610160401 | Reference only; direction unconfirmed |
| 5610101220 | Reference only; direction unconfirmed |
| 5610102520 | Reference only; direction unconfirmed |
| 5610161301 | Reference only; direction unconfirmed |
| 5610103120 | Reference only; direction unconfirmed |
| 5610103620 | Reference only; direction unconfirmed |
| 5610104020 | Reference only; direction unconfirmed |
| 5610105020 | Reference only; direction unconfirmed |
| 5610161501 | Reference only; direction unconfirmed |
| 5610104320 | Reference only; direction unconfirmed |
| 5610105120 | Reference only; direction unconfirmed |
| 5610161701 | Reference only; direction unconfirmed |
Common Applications
- Marine service
- Industrial maintenance
- Power generation
- Rail traction
Information to Send for Quotation
- Exact part number: 5610105420
- Part name or assembly position: Cylinder Head
- Engine model / series: MTU 538
- Engine serial number from nameplate
- Old-part photo showing number, connector, port, or size marking
- Required quantity and whether partial shipment is acceptable
- Destination country, delivery deadline, and preferred shipping method
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
5610105420 FAQ
Is 5610105420 supplied as a complete cylinder head?
The shipment scope must be stated in the quotation. Request an itemized description of the head and included components.
Verification Notes
- Catalog references and engine-series listings require confirmation against the full engine serial number before order.
