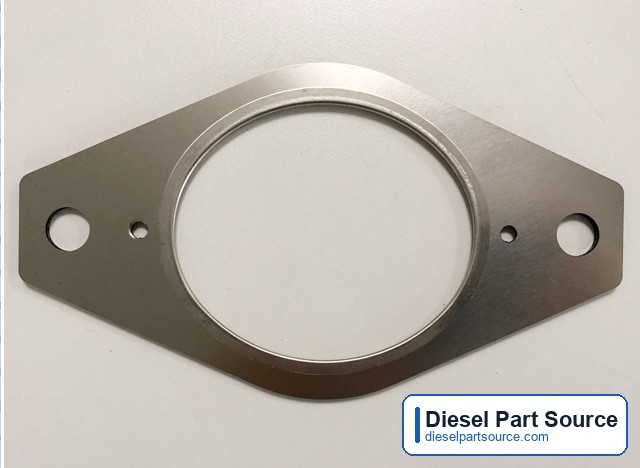

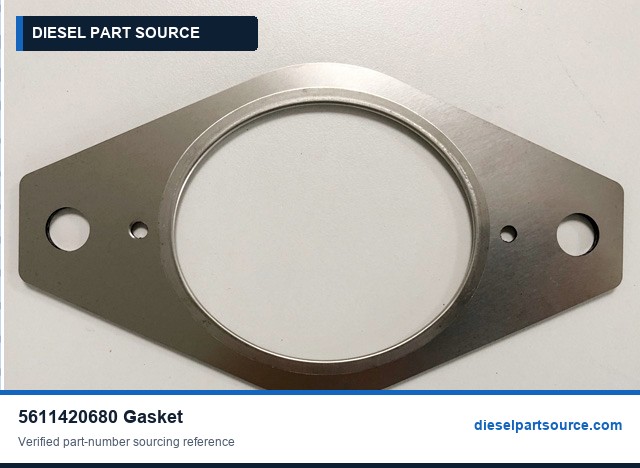

5611420680 Gasket. Listed in MTU 538 catalog references; confirm installation and current availability before ordering.
Check 5611420680 availability: Start with 5611420680 and the quantity. Add an engine serial number or a photo of the old Gasket if available; we will follow up on any missing details.
5611420680 Specification
About 5611420680 - Gasket
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5611420680 is a gasket catalogued for MTU 538 engines. It is the later number for 135M01767/1, 135M01094/1, 135M01093/1, 135M01105/1 and 6 more earlier references, so lists quoting those numbers are normally supplied as 5611420680. The catalog unit weight is 0.047 kg, which we use to estimate freight before quoting.
Technical Notes: Gaskets and seals
Gaskets, O-rings, and sealing rings keep oil, coolant, fuel, charge air, and exhaust gas in their own circuits. On high-speed MTU engines they work against high combustion pressures and frequent thermal cycling, so a seal that looks intact can still have lost its elasticity or set to the shape of the old joint.
Series 538 parts are often listed under older reference formats. Keep the full number including any letters and slash suffix when ordering seals and gaskets.
When This Type of Part Is Usually Replaced
- a joint has been opened for inspection or repair, even if the old seal looks usable
- oil or coolant weeping appears at a cover, pipe flange, or housing
- a coolant test shows oil contamination or combustion gas in the cooling system
Checks Before Ordering
- Material matters: fuel-system and coolant-system O-rings of the same size can use different elastomers
- Superseded gasket numbers often reflect a material or thickness change, so mixed old and new gaskets on one joint should be avoided
- Order the complete set for a joint rather than single pieces when the cover or head comes off
Engine Catalog References
5611420680 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 12V 538 TB92 | 12 | V | marine | build 2 |
| 20V 538 TB92 | 20 | V | marine | build 2 |
| 16V 538 TB93 | 16 | V | marine | build 3 |
| 20V 538 TB93 | 20 | V | marine | build 3 |
| 12V 538 TB8 | 12 | V | — | build TB |
| 12V 538 TB9 | 12 | V | — | build TB |
| 20V 538 TB1 | 20 | V | — | build TB |
| 20V 538 TB6 | 20 | V | — | build TB |
| 20V 538 TB7 | 20 | V | — | build TB |
| 16V 538 TB9 | 16 | V | — | build TB |
How Each Model Code Reads
- 12V 538 TB92: 12 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 20V 538 TB92: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 16V 538 TB93: 16 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 538 TB93: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 12V 538 TB8: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 12V 538 TB9: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB1: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB6: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB7: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 16V 538 TB9: 16 cylinders in V arrangement, Series 538, single-digit build code TB
Full parts list for this model family: MTU 538 TB1 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 5611420680 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 135M01767/1 | Listed earlier number |
| 135M01094/1 | Listed earlier number |
| 135M01093/1 | Listed earlier number |
| 135M01105/1 | Listed earlier number |
| 135M01713/2 | Listed earlier number |
| 135M01705/1 | Listed earlier number |
| 135M01033/1 | Listed earlier number |
| 135M01032/1 | Listed earlier number |
| 135M01086/1 | Listed earlier number |
| 135M01705/6 | Listed earlier number |
Common Applications
- Overhaul kits
- Marine service
- Industrial maintenance
- Generator repair
Information to Send for Quotation
- Part number: 5611420680
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
5611420680 FAQ
Is 135M01767/1 replaced by 5611420680?
Catalog history lists 5611420680 as the later number for 135M01767/1, 135M01094/1, 135M01093/1, 135M01105/1, 135M01713/2, 135M01705/1, 135M01033/1, 135M01032/1, 135M01086/1, 135M01705/6. Orders quoting those numbers are normally supplied as 5611420680; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- For 5611420680, confirm engine model, serial number, required quantity, and destination before ordering.
- If 5611420680 markings or replacement status are unclear, send old-part photos or nameplate details.
