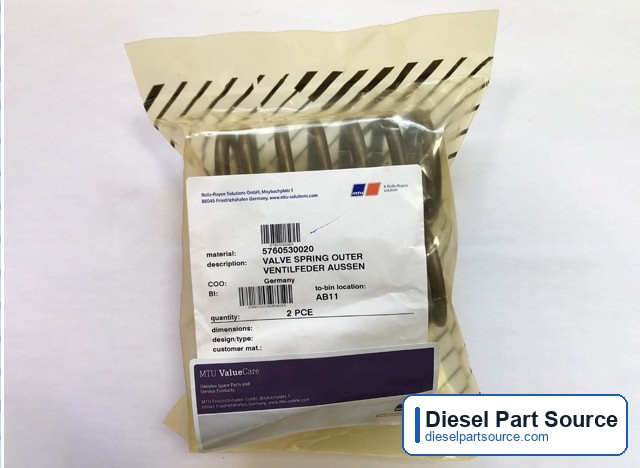

5760530020 Outer Valve Spring. Listed in MTU 595 catalog references; confirm installation and current availability before ordering.
Check 5760530020 availability: Start with 5760530020 and the quantity. Add an engine serial number or a photo of the old Outer Valve Spring if available; we will follow up on any missing details.
5760530020 Specification
About 5760530020 - Outer Valve Spring
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5760530020 is an outer valve spring catalogued for MTU 595 engines. It is the later number for 5700530020, so lists quoting that number are normally supplied as 5760530020. The catalog unit weight is 0.223 kg, which we use to estimate freight before quoting.
Technical Notes: Valve train
Valves, guides, seats, springs, and rocker components control gas exchange in the cylinder head. Wear in the valve train shows up as compression loss, rising exhaust temperatures, or changes in valve clearance between service intervals.
When This Type of Part Is Usually Replaced
- valve clearance changes quickly between adjustments
- compression is low on one or more cylinders
- valves or seats show burning, pitting, or recession during head overhaul
Checks Before Ordering
- Valve guides and seats are matched to the valve stem and head; order them per cylinder head
- Replace valve stem seals whenever valves are removed
- Inner and outer valve springs are usually separate part numbers
Engine Catalog References
5760530020 is listed for 9 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 595 TE70 | 16 | V | marine | build 0 |
| 16V 595 TE70L | 16 | V | marine | build 0 |
| 12V 595 TE90 | 12 | V | marine | build 0 |
| 16V 595 TE90 | 16 | V | marine | build 0 |
| 16V 595 TE60 | 16 | V | marine | build 0 |
| 16V 595 TE80 | 16 | V | — | build 0 |
| 16V 595 TE50 | 16 | V | marine | build 0 |
| 12V 595 TC10 | 12 | V | — | build 0 |
| 16V 595 TC10 | 16 | V | — | build 0 |
How Each Model Code Reads
- 16V 595 TE70: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 7 (marine), build 0
- 16V 595 TE70L: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 7 (marine), build 0, increased rating (L)
- 12V 595 TE90: 12 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 9 (marine), build 0
- 16V 595 TE90: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 9 (marine), build 0
- 16V 595 TE60: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 6 (marine), build 0
- 16V 595 TE80: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 8, build 0
- 16V 595 TE50: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TE, application group 5 (marine), build 0
- 12V 595 TC10: 12 cylinders in V arrangement, Series 595, turbocharged, charge-air code TC, application group 1, build 0
- 16V 595 TC10: 16 cylinders in V arrangement, Series 595, turbocharged, charge-air code TC, application group 1, build 0
Full parts list for this model family: MTU 595 TC10 to TE90 Parts List
Engine-series references do not confirm every installation. Final fitment of 5760530020 depends on the full engine serial number and assembly position.
Usually Ordered with Outer Valve Spring
Valve-train parts are serviced together per cylinder head. These MTU 595 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5700530020 | Listed earlier number |
Common Applications
- Cylinder-head overhaul
- Marine engine maintenance
- Power generation service
Information to Send for Quotation
- Part number: 5760530020
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
5760530020 FAQ
Is 5700530020 replaced by 5760530020?
Catalog history lists 5760530020 as the later number for 5700530020. Orders quoting that number are normally supplied as 5760530020; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- For 5760530020, confirm engine model, serial number, required quantity, and destination before ordering.
- If 5760530020 markings or replacement status are unclear, send old-part photos or nameplate details.
