5840782802 Supply Pipe. Listed in MTU 956, MTU 1163 catalog references; confirm installation and current availability before ordering.
Check 5840782802 availability: Start with 5840782802 and the quantity. Add an engine serial number or a photo of the old Supply Pipe if available; we will follow up on any missing details.
5840782802 Specification
About 5840782802 - Supply Pipe
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.

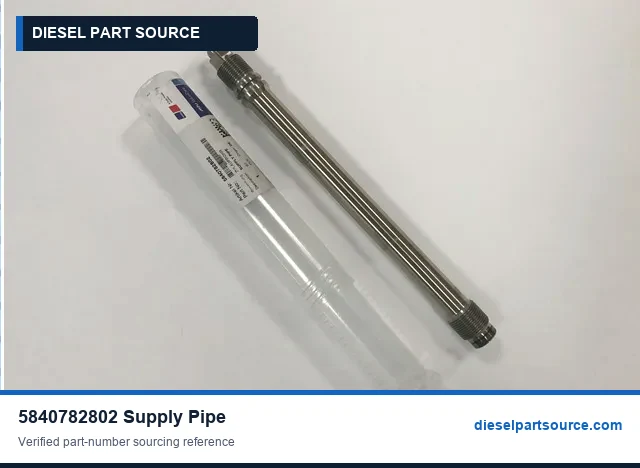

5840782802 is a supply pipe from the HP fuel line group of MTU 956 and MTU 1163 engines. It is the later number for 5840700533, 5840701033, 5840701433, 5840701533, so lists quoting those numbers are normally supplied as 5840782802. The catalog unit weight is 0.681 kg, which we use to estimate freight before quoting.
Technical Notes: Fuel system
The fuel system meters and delivers fuel at the pressure and timing the combustion process needs. Small wear in injectors, pumps, or valves shows up as higher fuel consumption, smoke, uneven cylinder temperatures, or rough running long before a complete failure.
Series 956 engines use conventional injection systems, and many have been in service for decades, so supersession checks are a normal part of quoting fuel-system parts.
When This Type of Part Is Usually Replaced
- exhaust temperatures differ noticeably between cylinders
- black smoke, hard starting, or knocking points to injection problems
- fuel leaks appear at high-pressure lines, unions, or pump seals
Checks Before Ordering
- Check the maintenance documentation on reusing high-pressure lines; deformed sealing cones on refitted lines are a common leak source
- Injectors should be ordered with the correct seals and copper rings for the cylinder head
- Exchange (EX-prefixed) injectors and pumps are a practical option when new units have long lead times
Engine Catalog References
5840782802 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 12V 956 TB82 | 12 | V | — | build 2 |
| 16V 956 TB82 | 16 | V | — | build 2 |
| 20V 956 TB82 | 20 | V | — | build 2 |
| 12V 956 TB92 | 12 | V | marine | build 2 |
| 16V 956 TB92 | 16 | V | marine | build 2 |
| 20V 956 TB92 | 20 | V | marine | build 2 |
| 12V 956 TB33 | 12 | V | generator sets | build 3 |
| 16V 956 TB33 | 16 | V | generator sets | build 3 |
| 20V 956 TB33 | 20 | V | generator sets | build 3 |
| 20V 956 TB34 | 20 | V | generator sets | build 4 |
How Each Model Code Reads
- 12V 956 TB82: 12 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 8, build 2
- 16V 956 TB82: 16 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 8, build 2
- 20V 956 TB82: 20 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 8, build 2
- 12V 956 TB92: 12 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 16V 956 TB92: 16 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 20V 956 TB92: 20 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 12V 956 TB33: 12 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 3 (generator sets), build 3
- 16V 956 TB33: 16 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 3 (generator sets), build 3
- 20V 956 TB33: 20 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 3 (generator sets), build 3
- 20V 956 TB34: 20 cylinders in V arrangement, Series 956, turbocharged, charge-air code TB, application group 3 (generator sets), build 4
Full parts list for this model family: MTU 956 TB33 to TB92 Parts List
Engine-series references do not confirm every installation. Final fitment of 5840782802 depends on the full engine serial number and assembly position.
Common Replacement Scenarios
This part is commonly replaced when:
- fuel pressure is unstable, injector balance is poor, or the engine shows hard-start symptoms
- the old part number is superseded and the correct replacement route needs confirmation
- fleet operators need a verified spare before scheduled engine service
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5840700533 | Listed earlier number |
| 5840701033 | Listed earlier number |
| 5840701433 | Listed earlier number |
| 5840701533 | Listed earlier number |
Parts in the Same Catalog Drawing
MTU 956/1163 high-pressure fuel-line reference. Drawing positions are identification references, not a confirmed kit or a list of items included with this part. Check the engine serial number and drawing revision before ordering.
| Position | Part number | Description |
|---|---|---|
| 25 | 5840780024 | Thrust Member |
| 20 | 5840700632/87 | High-Pressure Fuel Line |
| 50 | 700429020003 | O-Ring |
| 90 | 700429017002 | O-Ring |
Other Parts in the Same Assembly Group
Catalog descriptions for MTU 956/1163 engines list these part numbers under the hp fuel line. The grouping follows the catalog text; it is not a confirmed kit list or a drawing revision. Parts in the same group are often renewed together, but each reference still needs its own fitment check against the engine serial number.
| Part number | Description |
|---|---|
| 5840780024 | Thrust Member |
All assembly groups on this page are collected in the assembly & BOM reference index.
Common Applications
- Marine diesel engines
- Power generation sets
- Rail traction engines
- Industrial equipment
Information to Send for Quotation
- Exact part number: 5840782802
- Part name or assembly position: Supply Pipe
- Engine model / series: MTU 956, MTU 1163
- Engine serial number from nameplate
- Old-part photo showing number, connector, port, or size marking
- Required quantity and whether partial shipment is acceptable
- Destination country, delivery deadline, and preferred shipping method
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Ordering Notes
For 5840782802, send the engine model, serial number, quantity, old-part photo, and destination country. We will confirm whether the item is OEM, OEM-alternative, reman, or superseded before quotation.
5840782802 FAQ
Does 5840782802 fit MTU 956, MTU 1163?
5840782802 Supply Pipe is checked against MTU 956, MTU 1163. Final fitment depends on the engine serial number, rating, and installation position.
What information is needed to quote 5840782802?
Send the part number, engine model, engine serial number, old-part photo, quantity, destination country, and required delivery date. This lets us confirm stock route, packing, and shipping options.
Can you check alternatives or superseded numbers for 5840782802?
5840782802 may relate to 5840700533, 5840701033, 5840701433, 5840701533. Final replacement status is checked against the engine serial number before quote.
When is 5840782802 usually replaced?
fuel pressure is unstable, injector balance is poor, or the engine shows hard-start symptoms; the old part number is superseded and the correct replacement route needs confirmation; fleet operators need a verified spare before scheduled engine service.
Is 5840700533 replaced by 5840782802?
Catalog history lists 5840782802 as the later number for 5840700533, 5840701033, 5840701433, 5840701533. Orders quoting those numbers are normally supplied as 5840782802; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- Confirm engine model, serial number, required quantity, and destination before ordering.
- Send old part photos or nameplate details when markings or replacement status are unclear.
- Priority item: part number, supersession, and export packing details are checked before quote.
