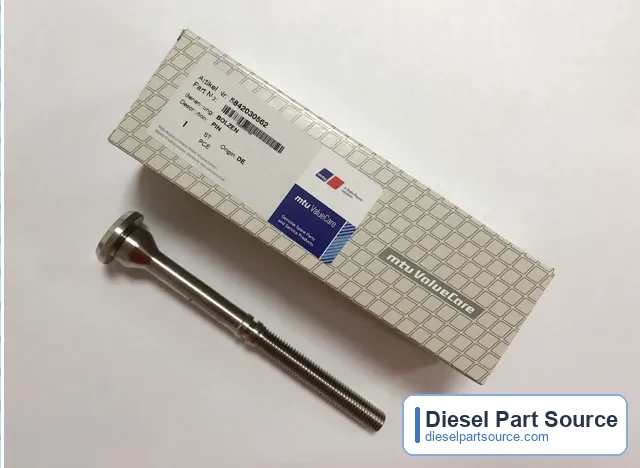

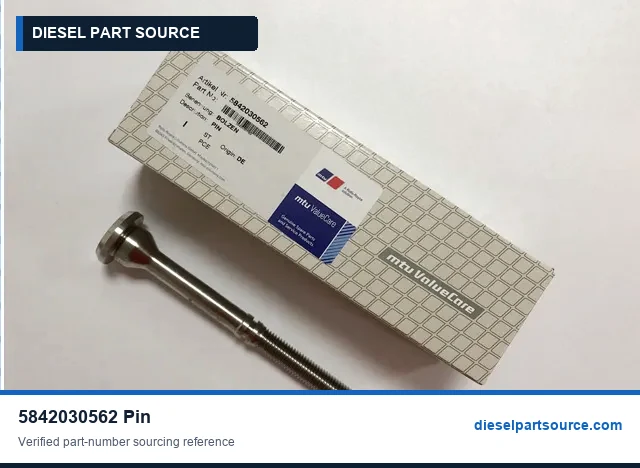

5842030562 Pin. Listed in MTU 396 catalog references; confirm installation and current availability before ordering.
Check 5842030562 availability: Start with 5842030562 and the quantity. Add an engine serial number or a photo of the old Pin if available; we will follow up on any missing details.
5842030562 Specification
About 5842030562 - Pin
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5842030562 is a pin catalogued for MTU 396 engines. It is the later number for 5842030262, 5842030462, so lists quoting those numbers are normally supplied as 5842030562. The catalog unit weight is 0.178 kg, which we use to estimate freight before quoting.
Technical Notes: Drive components
Gears, shafts, couplings, belts, fasteners, and locking parts transmit drive to pumps, camshafts, and auxiliaries and hold assemblies together. Many of these items are inexpensive but critical: a missing tab washer or a reused stretch bolt can cause a far larger failure.
When This Type of Part Is Usually Replaced
- locking elements such as tab washers or self-locking nuts have been removed
- gear teeth, splines, or keyways show wear or pitting
- belts show cracks, glazing, or incorrect tension after adjustment
Checks Before Ordering
- Use new fasteners where the maintenance documentation specifies single use
- Order belts as matched sets on multi-belt drives
- Check slotted nuts, washers, and pins together with the component they secure
Engine Catalog References
5842030562 is listed for 8 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 12V 396 TC54 | 12 | V | marine | build 4 |
| 12V 396 TC64 | 12 | V | marine | build 4 |
| 12V 396 TE64 | 12 | V | marine | build 4 |
| 12V 396 TE74 | 12 | V | marine | build 4 |
| 12V 396 TE74L | 12 | V | marine | build 4 |
| 12V 396 TE84 | 12 | V | — | build 4 |
| 12V 396 TE94 | 12 | V | marine | build 4 |
| 12V 396 TB34 | 12 | V | generator sets | build 4 |
How Each Model Code Reads
- 12V 396 TC54: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TC, application group 5 (marine), build 4
- 12V 396 TC64: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TC, application group 6 (marine), build 4
- 12V 396 TE64: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 6 (marine), build 4
- 12V 396 TE74: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 7 (marine), build 4
- 12V 396 TE74L: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 7 (marine), build 4, increased rating (L)
- 12V 396 TE84: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 8, build 4
- 12V 396 TE94: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TE, application group 9 (marine), build 4
- 12V 396 TB34: 12 cylinders in V arrangement, Series 396, turbocharged, charge-air code TB, application group 3 (generator sets), build 4
Full parts list for this model family: MTU 12V 396 TB94 to TE94 Parts List
Engine-series references do not confirm every installation. Final fitment of 5842030562 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5842030262 | Listed earlier number |
| 5842030462 | Listed earlier number |
Common Applications
- Engine assembly
- Marine propulsion
- Industrial drives
- Generator sets
Information to Send for Quotation
- Part number: 5842030562
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
5842030562 FAQ
Is 5842030262 replaced by 5842030562?
Catalog history lists 5842030562 as the later number for 5842030262, 5842030462. Orders quoting those numbers are normally supplied as 5842030562; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- For 5842030562, confirm engine model, serial number, required quantity, and destination before ordering.
- If 5842030562 markings or replacement status are unclear, send old-part photos or nameplate details.
