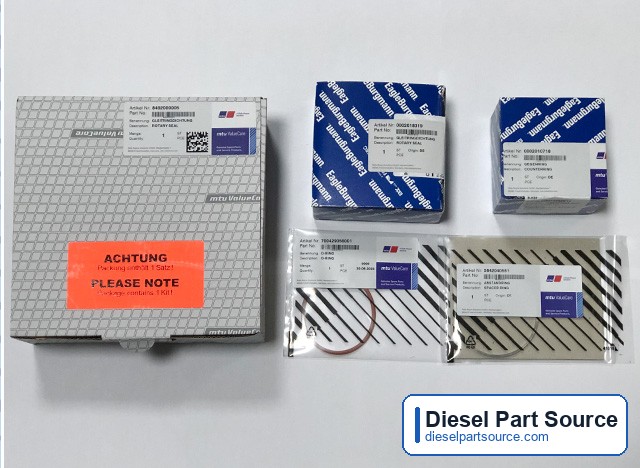

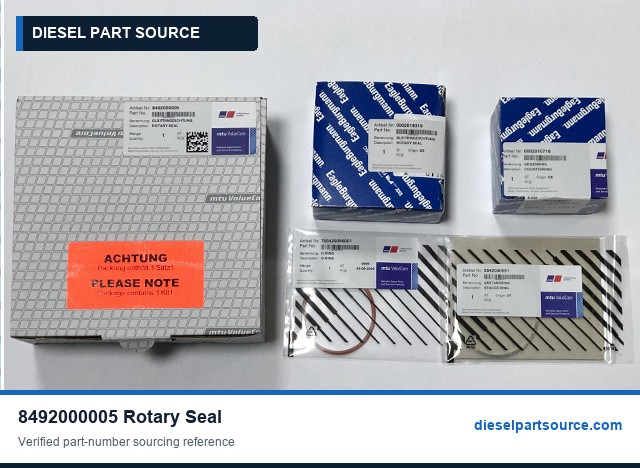

8492000005 Rotary Seal. Listed in MTU 956, MTU 1163 catalog references; confirm installation and current availability before ordering.
Check 8492000005 availability: Start with 8492000005 and the quantity. Add an engine serial number or a photo of the old Rotary Seal if available; we will follow up on any missing details.
8492000005 Specification
About 8492000005 - Rotary Seal
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
8492000005 is a rotary seal catalogued for MTU 956 and MTU 1163 engines. Catalog history lists X58420200036 as its later number; we check whether the later part can be fitted alone or needs related parts changed with it. The catalog unit weight is 0.145 kg, which we use to estimate freight before quoting.
Technical Notes: Gaskets and seals
Gaskets, O-rings, and sealing rings keep oil, coolant, fuel, charge air, and exhaust gas in their own circuits. On high-speed MTU engines they work against high combustion pressures and frequent thermal cycling, so a seal that looks intact can still have lost its elasticity or set to the shape of the old joint.
When This Type of Part Is Usually Replaced
- a joint has been opened for inspection or repair, even if the old seal looks usable
- oil or coolant weeping appears at a cover, pipe flange, or housing
- a coolant test shows oil contamination or combustion gas in the cooling system
Checks Before Ordering
- Material matters: fuel-system and coolant-system O-rings of the same size can use different elastomers
- Superseded gasket numbers often reflect a material or thickness change, so mixed old and new gaskets on one joint should be avoided
- Order the complete set for a joint rather than single pieces when the cover or head comes off
Engine Catalog References
8492000005 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 1163 TB73L | 16 | V | marine | build 3 |
| 20V 1163 TB73 | 20 | V | marine | build 3 |
| 20V 1163 TB73L | 20 | V | marine | build 3 |
| 12V 1163 TB93 | 12 | V | marine | build 3 |
| 16V 1163 TB93 | 16 | V | marine | build 3 |
| 20V 1163 TB93 | 20 | V | marine | build 3 |
| 16V 1163 TB76 | 16 | V | marine | build 6 |
| 16V 1163 TB76L | 16 | V | marine | build 6 |
| 16V 1163 TB82 | 16 | V | — | build 2 |
| 20V 1163 TB82 | 20 | V | — | build 2 |
How Each Model Code Reads
- 16V 1163 TB73L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 20V 1163 TB73: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3
- 20V 1163 TB73L: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 12V 1163 TB93: 12 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB93: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 1163 TB93: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB76: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6
- 16V 1163 TB76L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6, increased rating (L)
- 16V 1163 TB82: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
- 20V 1163 TB82: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
Full parts list for this model family: MTU 1163 TB73 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 8492000005 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| X58420200036 | Listed later number |
| 5802000160 | Reference only; direction unconfirmed |
| 0002010118 | Reference only; direction unconfirmed |
| 8495860004 | Reference only; direction unconfirmed |
| 0002010018 | Reference only; direction unconfirmed |
| 0002014319 | Reference only; direction unconfirmed |
| 0002014719 | Reference only; direction unconfirmed |
| 0002015419 | Reference only; direction unconfirmed |
| 0002015919 | Reference only; direction unconfirmed |
| 0002016419 | Reference only; direction unconfirmed |
| 8492010001 | Reference only; direction unconfirmed |
| 0002010718 | Reference only; direction unconfirmed |
| 0002018319 | Reference only; direction unconfirmed |
Common Applications
- Overhaul kits
- Marine service
- Industrial maintenance
- Generator repair
Information to Send for Quotation
- Part number: 8492000005
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
8492000005 FAQ
What replaces 8492000005?
Catalog history lists X58420200036 as the later number. We check whether X58420200036 can be fitted on its own or needs related parts changed, and quote 8492000005 where it is still available and preferred.
Verification Notes
- For 8492000005, confirm engine model, serial number, required quantity, and destination before ordering.
- If 8492000005 markings or replacement status are unclear, send old-part photos or nameplate details.
