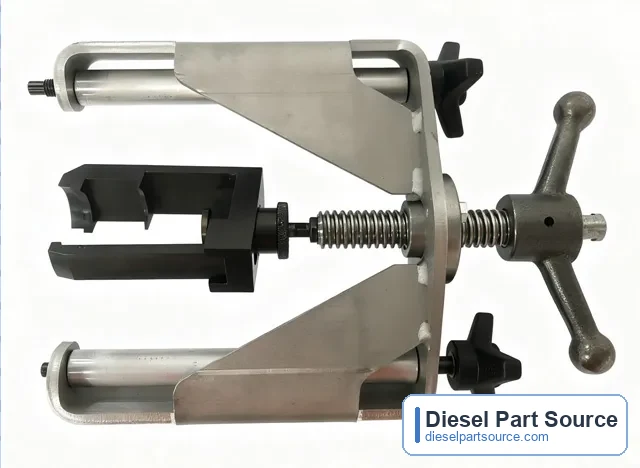

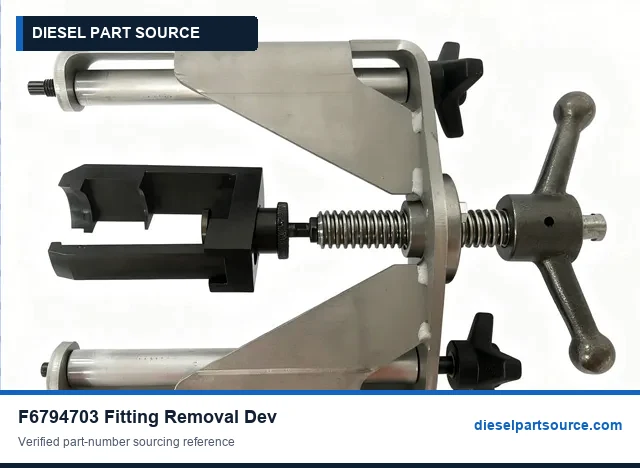

F6794703 injector fitting/removal tool listed for MTU BR4000-00/01/02. Confirm the injector connection and required tool components.
Check F6794703 availability: Start with F6794703 and the quantity. Add an engine serial number or a photo of the old Fitting/Removal Device if available; we will follow up on any missing details.
F6794703 Specification
Supply & Availability
- Stock
- Availability confirmed after inquiry
- Lead time
- Stock or sourcing route confirmed after inquiry
Availability is confirmed for each quotation and may change before order release.
F6794703 Quotation Scope
- Requested contents
- Injector fitting/removal device, not an injector.
- Evidence to request
- Installed injector interface and tool/adapters included in the set.
- Supplier confirmation
- Current stock, exact supplied condition and unit-specific documents are not confirmed by this catalog record. Request them with the quotation.
- Quote acceptance
- Offered number, quantity, included items, condition, price, lead time and delivery terms must be agreed before order release.
About F6794703 - Fitting/Removal Device
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
F6794703 is a fitting/removal device, not a replacement injector. The catalog associates it with extracting an injector from the cylinder head on BR4000-00/01/02 applications. Confirm the installed injector design and the components included in the tool set.
Technical Notes: Tools and supplies
Special tools and assembly supplies — barring devices, setting mandrels, pullers, lifting brackets, gauges, and assembly compounds. These exist because the corresponding service operation cannot be done correctly with an improvised substitute: turning the engine to top dead centre with the barring device, setting injector height with the mandrel, pulling a sleeve without loading the housing, or recording compression with the press recorder. An improvised tool usually damages the very component it is meant to service.
When This Type of Part Is Usually Replaced
- a factory-specified service operation names the tool by its tool number
- an improvised tool has already marked or damaged a component
- the engine is being opened for a service the workshop has not done before
Checks Before Ordering
- Identify by the tool number (usually the F-prefix series), not by what the tool looks like
- Confirm which engine application the tool number covers — one tool family can serve several series
- Check for a superseded tool number before assuming the current one is unavailable
Technical Data Status
Published catalog details help identify this part, but they are not a controlled drawing for the item offered. Measurements that are not shown here still need confirmation before substitution or order.
- Provide the injector and engine references; confirm adapters, puller components, and the applicable service procedure.
Request a datasheet or measurement check
Engine Catalog References
MTU Specialized Tools
Engine-series references do not confirm every installation. Final fitment of F6794703 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| F6554723 | Listed earlier number |
| F30373736 | Listed earlier number |
| F30378403 | Listed earlier number |
| F6557991 | Listed earlier number |
| F30377769 | Listed earlier number |
| F6557952 | Listed earlier number |
| F6790161 | Listed earlier number |
Common Applications
- Marine service
- Industrial maintenance
- Power generation
- Rail traction
Information to Send for Quotation
- Part number: F6794703
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
F6794703 FAQ
Will F6794703 work on every MTU injector?
Universal compatibility is not established. Check the tool interface against the injector design and service procedure for the engine build.
Is F6554723 replaced by F6794703?
Catalog history lists F6794703 as the later number for F6554723, F30373736, F30378403, F6557991, F30377769, F6557952, F6790161. Orders quoting those numbers are normally supplied as F6794703; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- Catalog references and engine-series listings require confirmation against the full engine serial number before order.
