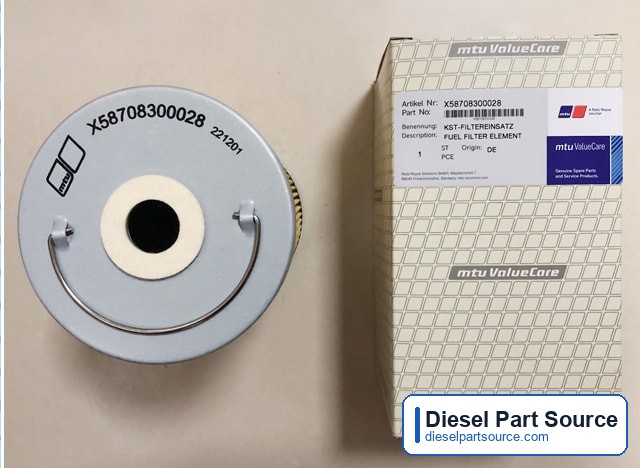

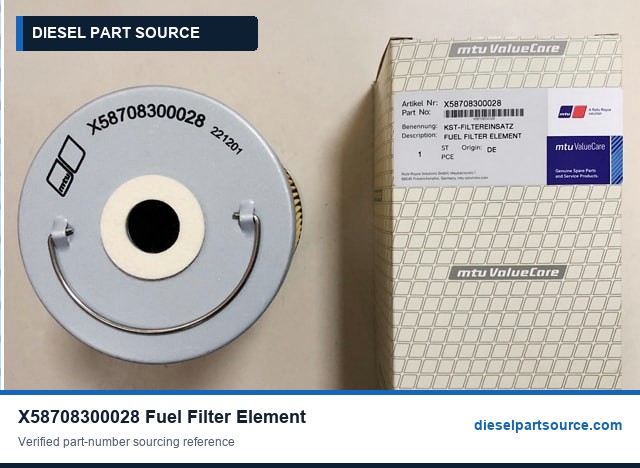

X58708300028 Fuel Filter Element. Listed in MTU 538 catalog references; confirm installation and current availability before ordering.
Check X58708300028 availability: Start with X58708300028 and the quantity. Add an engine serial number or a photo of the old Fuel Filter Element if available; we will follow up on any missing details.
X58708300028 Specification
About X58708300028 - Fuel Filter Element
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
X58708300028 is a fuel filter element catalogued for MTU 538 engines. It is the later number for 0000920505, 136L77702/1, 000N05220/1, 000N13033/1 and 7 more earlier references, so lists quoting those numbers are normally supplied as X58708300028. The catalog unit weight is 0.251 kg, which we use to estimate freight before quoting.
Technical Notes: Filters
Oil, fuel, and air filters protect the most expensive parts of the engine: bearings, injectors, and turbochargers. MTU specifies filter fineness and capacity for each series, and fuel filtration in particular is matched to the injection system, because common-rail injectors tolerate far less contamination than older pump-and-nozzle systems.
When This Type of Part Is Usually Replaced
- the scheduled service interval in the maintenance schedule is reached
- the differential-pressure indicator or a filter alarm signals restriction
- fuel contamination, water in fuel, or a dust ingress event has occurred
Checks Before Ordering
- Replace primary and secondary fuel filters together unless the maintenance schedule says otherwise
- Easy-change and spin-on versions of a filter are not always interchangeable on the same housing
- Keep one complete filter set per engine on board or on site for unplanned changes
Engine Catalog References
X58708300028 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 12V 538 TB92 | 12 | V | marine | build 2 |
| 20V 538 TB92 | 20 | V | marine | build 2 |
| 16V 538 TB93 | 16 | V | marine | build 3 |
| 20V 538 TB93 | 20 | V | marine | build 3 |
| 12V 538 TB8 | 12 | V | — | build TB |
| 12V 538 TB9 | 12 | V | — | build TB |
| 20V 538 TB1 | 20 | V | — | build TB |
| 20V 538 TB6 | 20 | V | — | build TB |
| 20V 538 TB7 | 20 | V | — | build TB |
| 16V 538 TB9 | 16 | V | — | build TB |
How Each Model Code Reads
- 12V 538 TB92: 12 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 20V 538 TB92: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 2
- 16V 538 TB93: 16 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 538 TB93: 20 cylinders in V arrangement, Series 538, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 12V 538 TB8: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 12V 538 TB9: 12 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB1: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB6: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 20V 538 TB7: 20 cylinders in V arrangement, Series 538, single-digit build code TB
- 16V 538 TB9: 16 cylinders in V arrangement, Series 538, single-digit build code TB
Full parts list for this model family: MTU 538 TB1 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of X58708300028 depends on the full engine serial number and assembly position.
Usually Ordered with Fuel Filter Element
Filters are changed with their housing seals, often as a full filter set. These MTU 538 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 0000920505 | Listed earlier number |
| 136L77702/1 | Listed earlier number |
| 000N05220/1 | Listed earlier number |
| 000N13033/1 | Listed earlier number |
| 000N13227/1 | Listed earlier number |
| 0004773415 | Listed earlier number |
| 0000920905 | Listed earlier number |
| 0000922905 | Listed earlier number |
| 0000922805 | Listed earlier number |
| 0000924905 | Listed earlier number |
| 0000921705 | Listed earlier number |
Common Applications
- Scheduled maintenance
- Fleet service programs
- Marine engine rooms
- Generator servicing
Information to Send for Quotation
- Part number: X58708300028
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
X58708300028 FAQ
Is 0000920505 replaced by X58708300028?
Catalog history lists X58708300028 as the later number for 0000920505, 136L77702/1, 000N05220/1, 000N13033/1, 000N13227/1, 0004773415, 0000920905, 0000922905, 0000922805, 0000924905, 0000921705. Orders quoting those numbers are normally supplied as X58708300028; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- For X58708300028, confirm engine model, serial number, required quantity, and destination before ordering.
- If X58708300028 markings or replacement status are unclear, send old-part photos or nameplate details.
