X59399100031 Gasket. Listed in MTU 4000 catalog references; confirm installation and current availability before ordering.
Check X59399100031 availability: Start with X59399100031 and the quantity. Add an engine serial number or a photo of the old Gasket if available; we will follow up on any missing details.
X59399100031 Specification
About X59399100031 - Gasket
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.

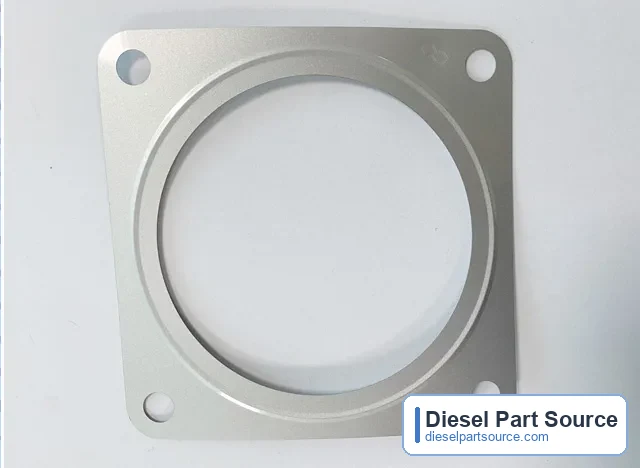

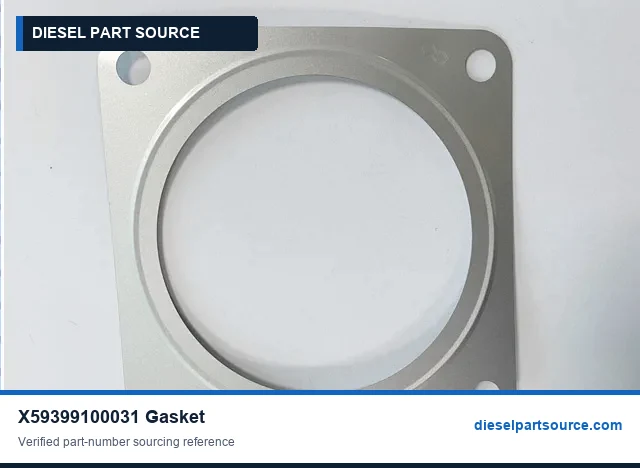

X59399100031 is a gasket catalogued for MTU 4000 engines. The catalog unit weight is 0.010 kg, which we use to estimate freight before quoting.
Technical Notes: Gaskets and seals
Gaskets, O-rings, and sealing rings keep oil, coolant, fuel, charge air, and exhaust gas in their own circuits. On high-speed MTU engines they work against high combustion pressures and frequent thermal cycling, so a seal that looks intact can still have lost its elasticity or set to the shape of the old joint.
When This Type of Part Is Usually Replaced
- a joint has been opened for inspection or repair, even if the old seal looks usable
- oil or coolant weeping appears at a cover, pipe flange, or housing
- a coolant test shows oil contamination or combustion gas in the cooling system
Checks Before Ordering
- Material matters: fuel-system and coolant-system O-rings of the same size can use different elastomers
- Superseded gasket numbers often reflect a material or thickness change, so mixed old and new gaskets on one joint should be avoided
- Order the complete set for a joint rather than single pieces when the cover or head comes off
Engine Catalog References
X59399100031 is listed for 11 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 20V 4000 G84F | 20 | V | diesel generator set | subgroup 8, build 4 |
| 20V 4000 G94F | 20 | V | diesel generator set | subgroup 9, build 4 |
| 20V 4000 B24F | 20 | V | — | subgroup 2, build 4 |
| 20V 4000 B34F | 20 | V | — | subgroup 3, build 4 |
| 20V 4000 G64S | 20 | V | diesel generator set | subgroup 6, build 4 |
| 20V 4000 G74S | 20 | V | diesel generator set | subgroup 7, build 4 |
| 20V 4000 G94S | 20 | V | diesel generator set | subgroup 9, build 4 |
| 20V 4000 B24S | 20 | V | — | subgroup 2, build 4 |
| 20V 4000 B44S | 20 | V | — | subgroup 4, build 4 |
| 20V 4000 G23 | 20 | V | diesel generator set | subgroup 2, build 3 |
| 20V 4000 G43 | 20 | V | diesel generator set | subgroup 4, build 3 |
How Each Model Code Reads
- 20V 4000 G84F: 20 cylinders in V arrangement, Series 4000, diesel generator set application (G), subgroup 8, build generation 4, rating variant F
- 20V 4000 G94F: 20 cylinders in V arrangement, Series 4000, diesel generator set application (G), subgroup 9, build generation 4, rating variant F
- 20V 4000 B24F: 20 cylinders in V arrangement, Series 4000, application code B, subgroup 2, build generation 4, rating variant F
- 20V 4000 B34F: 20 cylinders in V arrangement, Series 4000, application code B, subgroup 3, build generation 4, rating variant F
- 20V 4000 G64S: 20 cylinders in V arrangement, Series 4000, diesel generator set application (G), subgroup 6, build generation 4, rating variant S
- 20V 4000 G74S: 20 cylinders in V arrangement, Series 4000, diesel generator set application (G), subgroup 7, build generation 4, rating variant S
- 20V 4000 G94S: 20 cylinders in V arrangement, Series 4000, diesel generator set application (G), subgroup 9, build generation 4, rating variant S
- 20V 4000 B24S: 20 cylinders in V arrangement, Series 4000, application code B, subgroup 2, build generation 4, rating variant S
- 20V 4000 B44S: 20 cylinders in V arrangement, Series 4000, application code B, subgroup 4, build generation 4, rating variant S
- 20V 4000 G23: 20 cylinders in V arrangement, Series 4000, diesel generator set application (G), subgroup 2, build generation 3
- 20V 4000 G43: 20 cylinders in V arrangement, Series 4000, diesel generator set application (G), subgroup 4, build generation 3
Full parts list for this model family: MTU 20V 4000 B24F to G94S Parts List
Engine-series references do not confirm every installation. Final fitment of X59399100031 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
X59399100031 has no public alternative number listed in our current data. We still check old-part photos, engine serial number, and catalog position for supersession before quotation.
Common Applications
- Overhaul kits
- Marine service
- Industrial maintenance
- Generator repair
Information to Send for Quotation
- Part number: X59399100031
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- For X59399100031, confirm engine model, serial number, required quantity, and destination before ordering.
- If X59399100031 markings or replacement status are unclear, send old-part photos or nameplate details.
