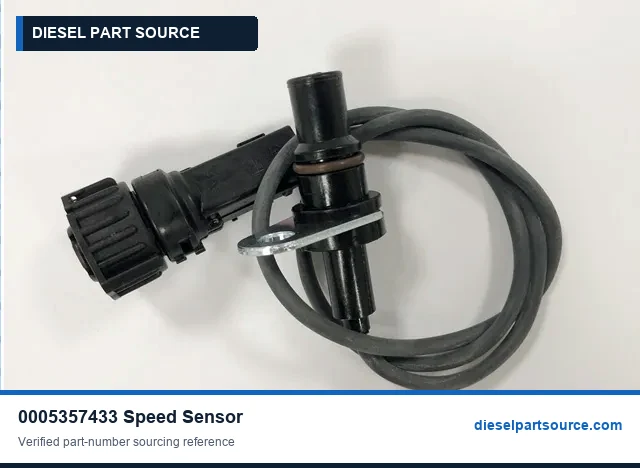

0005357433 Speed Sensor. Listed in MTU 2000 catalog references; confirm installation and current availability before ordering.
Check 0005357433 availability: Start with 0005357433 and the quantity. Add an engine serial number or a photo of the old Speed Sensor if available; we will follow up on any missing details.
0005357433 Specification
About 0005357433 - Speed Sensor
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
0005357433 is a speed sensor catalogued for MTU 2000 engines. It is the later number for 5000033353, so lists quoting that number are normally supplied as 0005357433. The catalog unit weight is 0.084 kg, which we use to estimate freight before quoting.
Technical Notes: Sensors and electrical
Pressure, temperature, speed, and level sensors feed the engine governor and safety system. A faulty sensor can trigger alarms, power reduction, or a shutdown even when the engine itself is healthy, which is why sensors are among the most frequently ordered emergency parts.
Most Series 2000 engines use electronic engine management, and fault logs help identify a failing sensor before it causes a shutdown.
When This Type of Part Is Usually Replaced
- a sensor reading is implausible compared with a test gauge or neighbouring engines
- an alarm or shutdown is logged but the measured value is normal
- connector damage, corrosion, or broken wiring is found at the sensor
Checks Before Ordering
- Thread type, connector style, and measuring range must match; similar-looking sensors are often not interchangeable
- Newer replacement numbers may require a different connector or cable, which should be confirmed before ordering
- Check the wiring and connector before replacing the sensor itself
Engine Catalog References
0005357433 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of 0005357433 depends on the full engine serial number and assembly position.
Usually Ordered with Speed Sensor
Sensors are refitted with new sealing rings, and the wiring is checked at the same time. These MTU 2000 references are commonly checked in the same job; each still needs its own fitment check.
- 0005356430 Temperature Sensor
- 0005357933 Speed Sensor
- 0035351731 Pressure Sensor
- 05132155 Sealing Ring
- 700429108000 O-Ring
- X00011800 Wiring Harness for Sensor
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5000033353 | Listed earlier number |
Common Applications
- Shipyards
- Generator maintenance
- Fleet service
Information to Send for Quotation
- Part number: 0005357433
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
0005357433 FAQ
Is 5000033353 replaced by 0005357433?
Catalog history lists 0005357433 as the later number for 5000033353. Orders quoting that number are normally supplied as 0005357433; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- Send the old sensor photo before purchase.
- Check compatibility against engine serial number.
