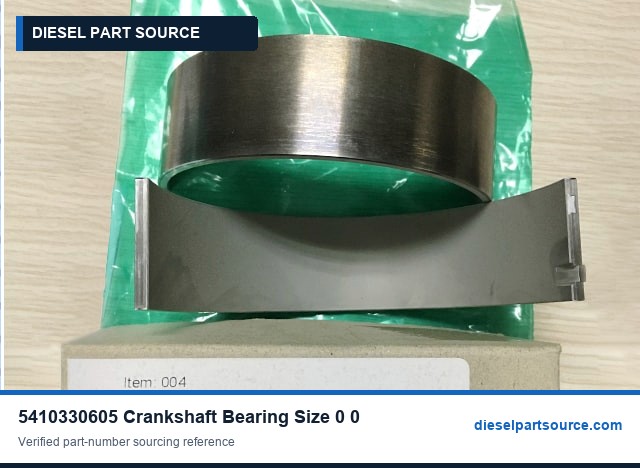

5410330605 Crankshaft Bearing Size 0-0. Listed in MTU 2000 catalog references; confirm installation and current availability before ordering.
Check 5410330605 availability: Start with 5410330605 and the quantity. Add an engine serial number or a photo of the old Crankshaft Bearing Size 0-0 if available; we will follow up on any missing details.
5410330605 Specification
About 5410330605 - Crankshaft Bearing Size 0-0
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5410330605 is a crankshaft bearing size 0-0 catalogued for MTU 2000 engines. The catalog unit weight is 0.159 kg, which we use to estimate freight before quoting.
Technical Notes: Bearings
Main and connecting-rod bearings support the crankshaft and run on a thin oil film. MTU bearings are supplied in size grades to suit original and reground crankshafts, so the size marked on the old shells or on the crankshaft record has to be known before ordering.
When This Type of Part Is Usually Replaced
- the engine reaches its major-overhaul interval
- oil analysis or filter inspection shows bearing material
- oil pressure loss or knocking points to bearing wear
Checks Before Ordering
- Confirm the size grade (for example size 0 or an undersize) from the old shells or crankshaft measurements
- Replace bearings as complete sets per crankshaft journal type
- Thrust bearings and washers should be checked together with the main bearings
Engine Catalog References
5410330605 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of 5410330605 depends on the full engine serial number and assembly position.
Usually Ordered with Crankshaft Bearing Size 0-0
Main and thrust bearings are checked and replaced as a set per journal type. These MTU 2000 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| X00009491 | Reference only; direction unconfirmed |
| 23526374 | Reference only; direction unconfirmed |
| 23528399 | Reference only; direction unconfirmed |
| 5360300040 | Reference only; direction unconfirmed |
| 5410339902 | Reference only; direction unconfirmed |
| 5410330102 | Reference only; direction unconfirmed |
| 5410333602 | Reference only; direction unconfirmed |
| X53103100001 | Reference only; direction unconfirmed |
Common Applications
- Engine overhaul
- Crankshaft service
- Marine and industrial engines
Information to Send for Quotation
- Part number: 5410330605
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- Confirm engine model, serial number, required quantity, and destination before ordering.
- Send old part photos or nameplate details when markings or replacement status are unclear.
