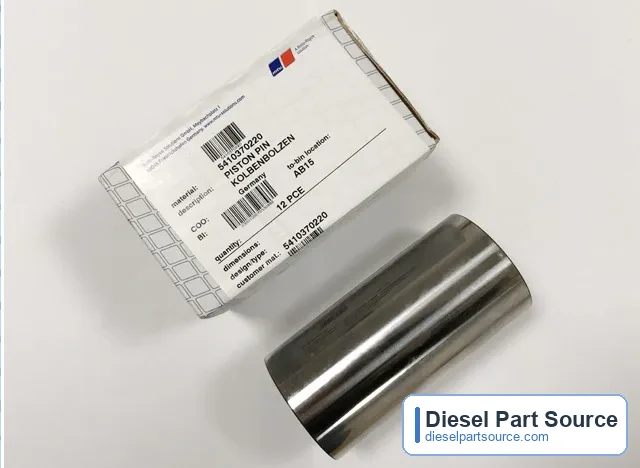

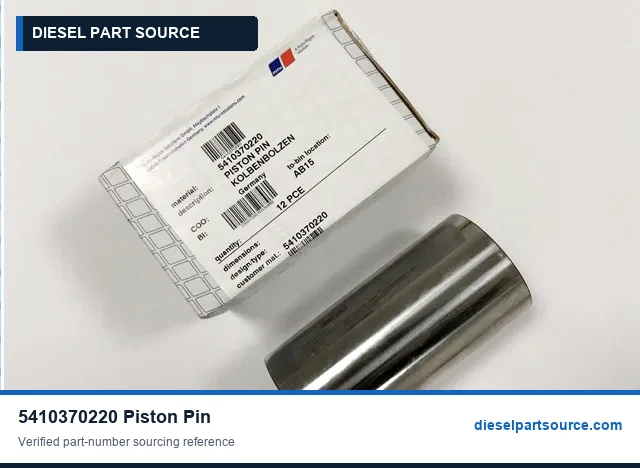

5410370220 Piston Pin. Listed in MTU 2000 catalog references; confirm installation and current availability before ordering.
Check 5410370220 availability: Start with 5410370220 and the quantity. Add an engine serial number or a photo of the old Piston Pin if available; we will follow up on any missing details.
5410370220 Specification
About 5410370220 - Piston Pin
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5410370220 is a piston pin catalogued for MTU 2000 engines. The catalog unit weight is 1.268 kg, which we use to estimate freight before quoting.
Technical Notes: Pistons and liners
Pistons, rings, and wet cylinder liners form the combustion chamber and carry the highest thermal loads in the engine. They are usually replaced during a major overhaul, and liner protrusion and size grades have to be checked so the cylinder head seals correctly.
When This Type of Part Is Usually Replaced
- oil consumption or blow-by rises beyond the expected level
- borescope inspection shows liner scoring, bore polishing, or ring damage
- liner cavitation is found on the coolant side
Checks Before Ordering
- Order liners with their sealing rings, and pistons with complete ring sets
- Size grades and weight classes must be matched within one engine
- Measurements from the inspection record decide which grade to order
Engine Catalog References
5410370220 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of 5410370220 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5410370020 | Reference only; direction unconfirmed |
| 5410370220M | Reference only; direction unconfirmed |
Common Applications
- Major overhaul
- In-frame rebuild
- Marine engine service
- Industrial engine repair
Information to Send for Quotation
- Part number: 5410370220
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- Confirm engine model, serial number, required quantity, and destination before ordering.
- Send old part photos or nameplate details when markings or replacement status are unclear.
