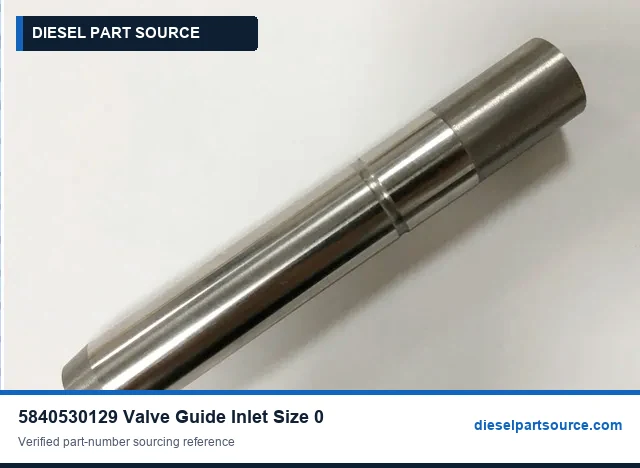

5840530129 Inlet Valve Guide, Size 0. Listed in MTU 956, MTU 1163 catalog references; confirm installation and current availability before ordering.
Check 5840530129 availability: Start with 5840530129 and the quantity. Add an engine serial number or a photo of the old Inlet Valve Guide, Size 0 if available; we will follow up on any missing details.
5840530129 Specification
About 5840530129 - Inlet Valve Guide, Size 0
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5840530129 is an inlet valve guide, size 0 catalogued for MTU 956 and MTU 1163 engines. It is the later number for 5800530430, 5800530729, 5800530529, 5840530029, so lists quoting those numbers are normally supplied as 5840530129. The catalog unit weight is 0.202 kg, which we use to estimate freight before quoting.
Technical Notes: Valve train
Valves, guides, seats, springs, and rocker components control gas exchange in the cylinder head. Wear in the valve train shows up as compression loss, rising exhaust temperatures, or changes in valve clearance between service intervals.
When This Type of Part Is Usually Replaced
- valve clearance changes quickly between adjustments
- compression is low on one or more cylinders
- valves or seats show burning, pitting, or recession during head overhaul
Checks Before Ordering
- Valve guides and seats are matched to the valve stem and head; order them per cylinder head
- Replace valve stem seals whenever valves are removed
- Inner and outer valve springs are usually separate part numbers
Engine Catalog References
5840530129 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 1163 TB73L | 16 | V | marine | build 3 |
| 20V 1163 TB73 | 20 | V | marine | build 3 |
| 20V 1163 TB73L | 20 | V | marine | build 3 |
| 12V 1163 TB93 | 12 | V | marine | build 3 |
| 16V 1163 TB93 | 16 | V | marine | build 3 |
| 20V 1163 TB93 | 20 | V | marine | build 3 |
| 16V 1163 TB76 | 16 | V | marine | build 6 |
| 16V 1163 TB76L | 16 | V | marine | build 6 |
| 16V 1163 TB82 | 16 | V | — | build 2 |
| 20V 1163 TB82 | 20 | V | — | build 2 |
How Each Model Code Reads
- 16V 1163 TB73L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 20V 1163 TB73: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3
- 20V 1163 TB73L: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 12V 1163 TB93: 12 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB93: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 1163 TB93: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB76: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6
- 16V 1163 TB76L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6, increased rating (L)
- 16V 1163 TB82: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
- 20V 1163 TB82: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
Full parts list for this model family: MTU 1163 TB73 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 5840530129 depends on the full engine serial number and assembly position.
Common Replacement Scenarios
This part is commonly replaced when:
- combustion quality, fuel delivery, compression, or exhaust temperature is outside normal range
- installation position and matched mating parts must be checked before replacement
- overhaul buyers need verified valve, nozzle, injector, or pump references before dispatch
Usually Ordered with Inlet Valve Guide, Size 0
Valve work usually includes guides, seats, stem seals, and springs. These MTU 956, MTU 1163 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5800530430 | Listed earlier number |
| 5800530729 | Listed earlier number |
| 5800530529 | Listed earlier number |
| 5840530029 | Listed earlier number |
Common Applications
- Cylinder-head overhaul
- Marine engine maintenance
- Power generation service
Information to Send for Quotation
- Exact part number: 5840530129
- Part name or assembly position: Inlet Valve Guide, Size 0
- Engine model / series: MTU 956, MTU 1163
- Engine serial number from nameplate
- Old-part photo showing number, connector, port, or size marking
- Required quantity and whether partial shipment is acceptable
- Destination country, delivery deadline, and preferred shipping method
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Ordering Notes
For 5840530129, send the engine model, serial number, quantity, old-part photo, and destination country. We will confirm whether the item is OEM, OEM-alternative, reman, or superseded before quotation.
5840530129 FAQ
Does 5840530129 fit MTU 956, MTU 1163?
5840530129 Inlet Valve Guide, Size 0 is checked against MTU 956, MTU 1163. Final fitment depends on the engine serial number, rating, and installation position.
What information is needed to quote 5840530129?
Send the part number, engine model, engine serial number, old-part photo, quantity, destination country, and required delivery date. This lets us confirm stock route, packing, and shipping options.
Can you check alternatives or superseded numbers for 5840530129?
5840530129 may relate to 5800530430, 5800530729, 5800530529, 5840530029. Final replacement status is checked against the engine serial number before quote.
When is 5840530129 usually replaced?
combustion quality, fuel delivery, compression, or exhaust temperature is outside normal range; installation position and matched mating parts must be checked before replacement; overhaul buyers need verified valve, nozzle, injector, or pump references before dispatch.
Is 5800530430 replaced by 5840530129?
Catalog history lists 5840530129 as the later number for 5800530430, 5800530729, 5800530529, 5840530029. Orders quoting those numbers are normally supplied as 5840530129; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- Confirm engine model, serial number, required quantity, and destination before ordering.
- Send old part photos or nameplate details when markings or replacement status are unclear.
- Priority item: part number, supersession, and export packing details are checked before quote.
