5840530229 Inlet Valve Guide, Size 1. Listed in MTU 956, MTU 1163 catalog references; confirm installation and current availability before ordering.
Check 5840530229 availability: Start with 5840530229 and the quantity. Add an engine serial number or a photo of the old Inlet Valve Guide, Size 1 if available; we will follow up on any missing details.
5840530229 Specification
About 5840530229 - Inlet Valve Guide, Size 1
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.

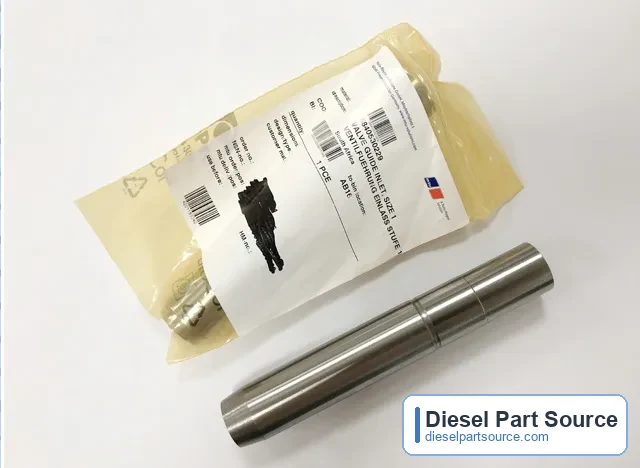

5840530229 is an inlet valve guide, size 1 catalogued for MTU 956 and MTU 1163 engines. It is the later number for 5800530629, so lists quoting that number are normally supplied as 5840530229. The catalog unit weight is 0.246 kg, which we use to estimate freight before quoting.
Technical Notes: Valve train
Valves, guides, seats, springs, and rocker components control gas exchange in the cylinder head. Wear in the valve train shows up as compression loss, rising exhaust temperatures, or changes in valve clearance between service intervals.
When This Type of Part Is Usually Replaced
- valve clearance changes quickly between adjustments
- compression is low on one or more cylinders
- valves or seats show burning, pitting, or recession during head overhaul
Checks Before Ordering
- Valve guides and seats are matched to the valve stem and head; order them per cylinder head
- Replace valve stem seals whenever valves are removed
- Inner and outer valve springs are usually separate part numbers
Engine Catalog References
5840530229 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 1163 TB73L | 16 | V | marine | build 3 |
| 20V 1163 TB73 | 20 | V | marine | build 3 |
| 20V 1163 TB73L | 20 | V | marine | build 3 |
| 12V 1163 TB93 | 12 | V | marine | build 3 |
| 16V 1163 TB93 | 16 | V | marine | build 3 |
| 20V 1163 TB93 | 20 | V | marine | build 3 |
| 16V 1163 TB76 | 16 | V | marine | build 6 |
| 16V 1163 TB76L | 16 | V | marine | build 6 |
| 16V 1163 TB82 | 16 | V | — | build 2 |
| 20V 1163 TB82 | 20 | V | — | build 2 |
How Each Model Code Reads
- 16V 1163 TB73L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 20V 1163 TB73: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3
- 20V 1163 TB73L: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 12V 1163 TB93: 12 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB93: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 1163 TB93: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB76: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6
- 16V 1163 TB76L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6, increased rating (L)
- 16V 1163 TB82: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
- 20V 1163 TB82: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
Full parts list for this model family: MTU 1163 TB73 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 5840530229 depends on the full engine serial number and assembly position.
Usually Ordered with Inlet Valve Guide, Size 1
Valve work usually includes guides, seats, stem seals, and springs. These MTU 956, MTU 1163 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 5800530629 | Listed earlier number |
Common Applications
- Marine propulsion
- Shipyard overhaul
- Power generation
Information to Send for Quotation
- Part number: 5840530229
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
5840530229 FAQ
Is 5800530629 replaced by 5840530229?
Catalog history lists 5840530229 as the later number for 5800530629. Orders quoting that number are normally supplied as 5840530229; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- Confirm cylinder head configuration before ordering.
- Send old part photos when size marking is unclear.
