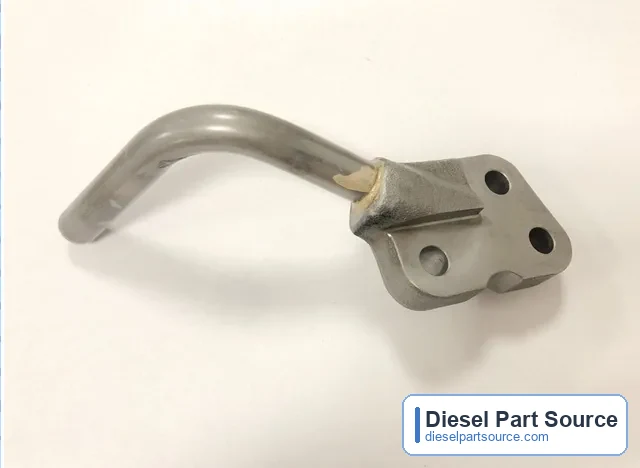

5841800143 Oil Spray Nozzle. Listed in MTU 956, MTU 1163 catalog references; confirm installation and current availability before ordering.
Check 5841800143 availability: Start with 5841800143 and the quantity. Add an engine serial number or a photo of the old Oil Spray Nozzle if available; we will follow up on any missing details.
5841800143 Specification
About 5841800143 - Oil Spray Nozzle
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5841800143 is an oil spray nozzle catalogued for MTU 956 and MTU 1163 engines. The catalog unit weight is 0.248 kg, which we use to estimate freight before quoting.
Technical Notes: Lubrication
The lubrication system supplies oil to bearings, pistons, the valve train, and turbochargers, and on many engines also cools the pistons. Low oil pressure is one of the main protective shutdown triggers, so pumps, valves, and coolers in this circuit are critical to availability.
When This Type of Part Is Usually Replaced
- oil pressure drops at operating temperature compared with earlier readings
- oil analysis shows coolant, fuel dilution, or rising wear metals
- the oil cooler leaks internally or externally
Checks Before Ordering
- Use an oil of the category permitted for the engine and fuel in use
- Pressure-relief and regulating valves should be replaced with their springs and seals
- After a bearing failure, clean or replace the oil cooler to remove debris
Engine Catalog References
5841800143 is listed for 10 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 16V 1163 TB73L | 16 | V | marine | build 3 |
| 20V 1163 TB73 | 20 | V | marine | build 3 |
| 20V 1163 TB73L | 20 | V | marine | build 3 |
| 12V 1163 TB93 | 12 | V | marine | build 3 |
| 16V 1163 TB93 | 16 | V | marine | build 3 |
| 20V 1163 TB93 | 20 | V | marine | build 3 |
| 16V 1163 TB76 | 16 | V | marine | build 6 |
| 16V 1163 TB76L | 16 | V | marine | build 6 |
| 16V 1163 TB82 | 16 | V | — | build 2 |
| 20V 1163 TB82 | 20 | V | — | build 2 |
How Each Model Code Reads
- 16V 1163 TB73L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 20V 1163 TB73: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3
- 20V 1163 TB73L: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 3, increased rating (L)
- 12V 1163 TB93: 12 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB93: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 20V 1163 TB93: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 9 (marine), build 3
- 16V 1163 TB76: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6
- 16V 1163 TB76L: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 7 (marine), build 6, increased rating (L)
- 16V 1163 TB82: 16 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
- 20V 1163 TB82: 20 cylinders in V arrangement, Series 1163, turbocharged, charge-air code TB, application group 8, build 2
Full parts list for this model family: MTU 1163 TB73 to TB93 Parts List
Engine-series references do not confirm every installation. Final fitment of 5841800143 depends on the full engine serial number and assembly position.
Usually Ordered with Oil Spray Nozzle
Injectors are refitted with new sealing rings, and the high-pressure connection is checked at the same time. These MTU 956, MTU 1163 references are commonly checked in the same job; each still needs its own fitment check.
- 007603016105 Copper Sealing Ring
- 007603033100 Sealing Ring
- 5840700632-87 HP Fuel Line
- 700429045000 O-Ring
Cross-Reference and Superseded Part Numbers
5841800143 has no public alternative number listed in our current data. We still check old-part photos, engine serial number, and catalog position for supersession before quotation.
Common Applications
- Marine propulsion
- Major overhaul
- Power plant service
Information to Send for Quotation
- Part number: 5841800143
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- Verify installed position and engine series.
- Best ordered with related seals or gaskets.
