X52405500190 Profile Gasket for Cylinder. Listed in MTU 4000 catalog references; confirm installation and current availability before ordering.
Check X52405500190 availability: Start with X52405500190 and the quantity. Add an engine serial number or a photo of the old Profile Gasket for Cylinder if available; we will follow up on any missing details.
X52405500190 Specification

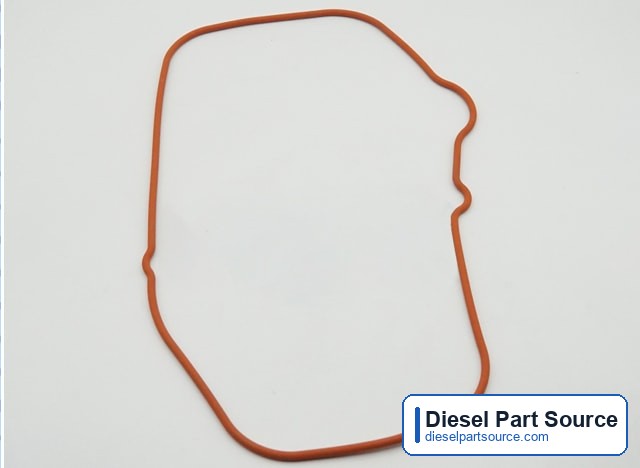

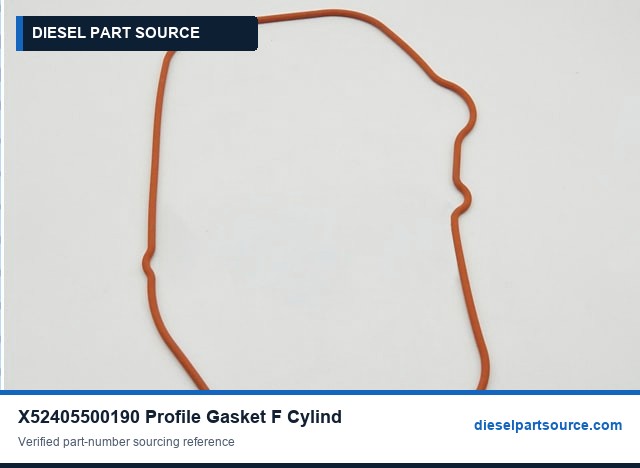

About X52405500190 - Profile Gasket for Cylinder
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
X52405500190 is a profile gasket for cylinder catalogued for MTU 4000 engines. It is the later number for 700429250000, 700429253000, so lists quoting those numbers are normally supplied as X52405500190. The catalog unit weight is 0.023 kg, which we use to estimate freight before quoting.
Technical Notes: Gaskets and seals
Gaskets, O-rings, and sealing rings keep oil, coolant, fuel, charge air, and exhaust gas in their own circuits. On high-speed MTU engines they work against high combustion pressures and frequent thermal cycling, so a seal that looks intact can still have lost its elasticity or set to the shape of the old joint.
When This Type of Part Is Usually Replaced
- a joint has been opened for inspection or repair, even if the old seal looks usable
- oil or coolant weeping appears at a cover, pipe flange, or housing
- a coolant test shows oil contamination or combustion gas in the cooling system
Checks Before Ordering
- Material matters: fuel-system and coolant-system O-rings of the same size can use different elastomers
- Superseded gasket numbers often reflect a material or thickness change, so mixed old and new gaskets on one joint should be avoided
- Order the complete set for a joint rather than single pieces when the cover or head comes off
Engine Catalog References
X52405500190 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 4000 R43 | 8 | V | rail | subgroup 4, build 3 |
| 8V 4000 R43L | 8 | V | rail | subgroup 4, build 3 |
| 12V 4000 R43 | 12 | V | rail | subgroup 4, build 3 |
| 12V 4000 R43L | 12 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43R | 16 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43 | 16 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43L | 16 | V | rail | subgroup 4, build 3 |
| 20V 4000 R43 | 20 | V | rail | subgroup 4, build 3 |
| 20V 4000 R43L | 20 | V | rail | subgroup 4, build 3 |
| 20V 4000 R63R | 20 | V | rail | subgroup 6, build 3 |
| 20V 4000 R63 | 20 | V | rail | subgroup 6, build 3 |
| 20V 4000 R63L | 20 | V | rail | subgroup 6, build 3 |
How Each Model Code Reads
- 8V 4000 R43: 8 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 8V 4000 R43L: 8 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 12V 4000 R43: 12 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 12V 4000 R43L: 12 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 16V 4000 R43R: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, rating variant R
- 16V 4000 R43: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 16V 4000 R43L: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 20V 4000 R43: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 20V 4000 R43L: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 20V 4000 R63R: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3, rating variant R
- 20V 4000 R63: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3
- 20V 4000 R63L: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3, increased rating (L)
Full parts list for this model family: MTU 4000 R43 to R63R Parts List
Engine-series references do not confirm every installation. Final fitment of X52405500190 depends on the full engine serial number and assembly position.
Usually Ordered with Profile Gasket for Cylinder
When the cylinder head comes off, head bolts and the seals disturbed with it are normally renewed. These MTU 4000 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 700429250000 | Listed earlier number |
| 700429253000 | Listed earlier number |
Common Applications
- Overhaul kits
- Marine service
- Industrial maintenance
- Generator repair
Information to Send for Quotation
- Part number: X52405500190
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
X52405500190 FAQ
Is 700429250000 replaced by X52405500190?
Catalog history lists X52405500190 as the later number for 700429250000, 700429253000. Orders quoting those numbers are normally supplied as X52405500190; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- For X52405500190, confirm engine model, serial number, required quantity, and destination before ordering.
- If X52405500190 markings or replacement status are unclear, send old-part photos or nameplate details.
