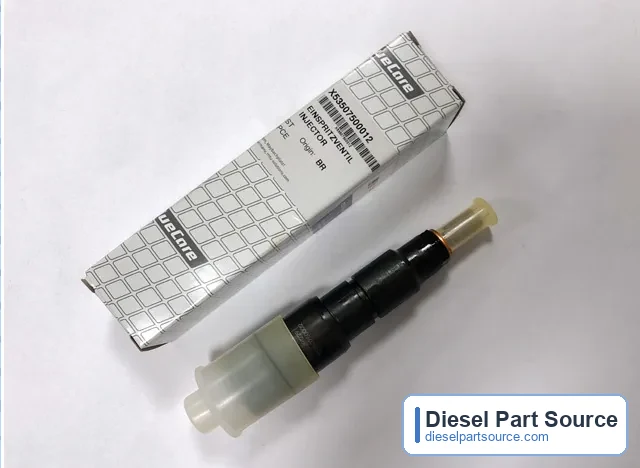

X53507500012 Injector. Listed in MTU 2000 catalog references; confirm installation and current availability before ordering.
Check X53507500012 availability: Start with X53507500012 and the quantity. Add an engine serial number or a photo of the old Injector if available; we will follow up on any missing details.
X53507500012 Specification
Supply & Availability
- Stock
- Availability confirmed after inquiry
- Lead time
- Stock or sourcing route confirmed after inquiry
Availability is confirmed for each quotation and may change before order release.
About X53507500012 - Injector
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
X53507500012 is an injector catalogued for MTU 2000 engines. It is the later number for X53507500008, so lists quoting that number are normally supplied as X53507500012. The catalog unit weight is 0.298 kg, which we use to estimate freight before quoting.
Technical Notes: Fuel system
The fuel system meters and delivers fuel at the pressure and timing the combustion process needs. Small wear in injectors, pumps, or valves shows up as higher fuel consumption, smoke, uneven cylinder temperatures, or rough running long before a complete failure.
Series 2000 engines have been built with different injection systems over their production life, including common-rail versions. The full model code and serial number decide which injector and pump references apply.
When This Type of Part Is Usually Replaced
- exhaust temperatures differ noticeably between cylinders
- black smoke, hard starting, or knocking points to injection problems
- fuel leaks appear at high-pressure lines, unions, or pump seals
Checks Before Ordering
- Check the maintenance documentation on reusing high-pressure lines; deformed sealing cones on refitted lines are a common leak source
- Injectors should be ordered with the correct seals and copper rings for the cylinder head
- Exchange (EX-prefixed) injectors and pumps are a practical option when new units have long lead times
Engine Catalog References
X53507500012 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of X53507500012 depends on the full engine serial number and assembly position.
Common Replacement Scenarios
This part is commonly replaced when:
- combustion quality, fuel delivery, compression, or exhaust temperature is outside normal range
- installation position and matched mating parts must be checked before replacement
- overhaul buyers need verified valve, nozzle, injector, or pump references before dispatch
Usually Ordered with Injector
Injectors are refitted with new sealing rings, and the high-pressure connection is checked at the same time. These MTU 2000 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| X53507500008 | Listed earlier number |
Common Applications
- Marine diesel engines
- Power generation sets
- Rail traction engines
- Industrial equipment
Information to Send for Quotation
- Exact part number: X53507500012
- Part name or assembly position: Injector
- Engine model / series: MTU 2000
- Engine serial number from nameplate
- Old-part photo showing number, connector, port, or size marking
- Required quantity and whether partial shipment is acceptable
- Destination country, delivery deadline, and preferred shipping method
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Ordering Notes
For X53507500012, send the engine model, serial number, quantity, old-part photo, and destination country. We will confirm whether the item is OEM, OEM-alternative, reman, or superseded before quotation.
X53507500012 FAQ
Does X53507500012 fit MTU 2000?
X53507500012 Injector is checked against MTU 2000. Final fitment depends on the engine serial number, rating, and installation position.
What information is needed to quote X53507500012?
Send the part number, engine model, engine serial number, old-part photo, quantity, destination country, and required delivery date. This lets us confirm stock route, packing, and shipping options.
Can you check alternatives or superseded numbers for X53507500012?
X53507500012 may relate to X53507500008. Final replacement status is checked against the engine serial number before quote.
When is X53507500012 usually replaced?
combustion quality, fuel delivery, compression, or exhaust temperature is outside normal range; installation position and matched mating parts must be checked before replacement; overhaul buyers need verified valve, nozzle, injector, or pump references before dispatch.
Is X53507500008 replaced by X53507500012?
Catalog history lists X53507500012 as the later number for X53507500008. Orders quoting that number are normally supplied as X53507500012; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- For X53507500012, confirm engine model, serial number, required quantity, and destination before ordering.
- If X53507500012 markings or replacement status are unclear, send old-part photos or nameplate details.
- Priority item: part number, supersession, and export packing details are checked before quote.
