X52499100815 4/2-Way Solenoid Valve. Listed in MTU 4000 catalog references; confirm installation and current availability before ordering.
Check X52499100815 availability: Start with X52499100815 and the quantity. Add an engine serial number or a photo of the old 4/2-Way Solenoid Valve if available; we will follow up on any missing details.
X52499100815 Specification
About X52499100815 - 4/2-Way Solenoid Valve
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.

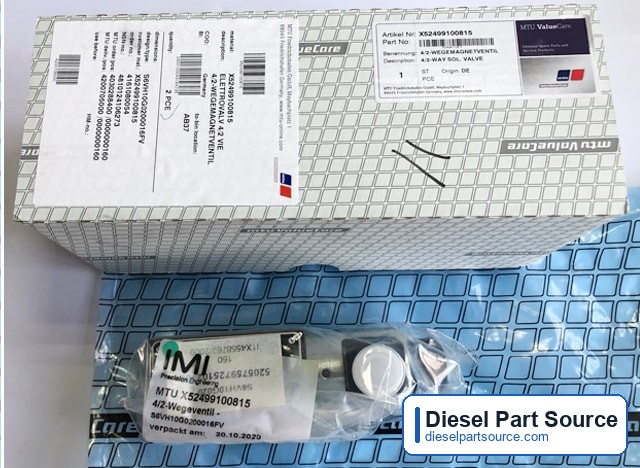

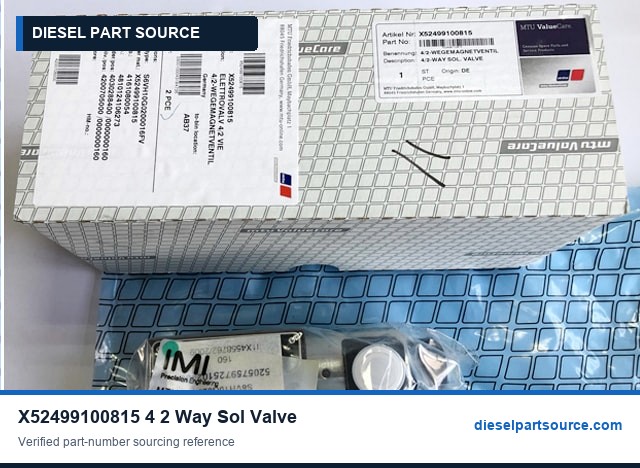

X52499100815 is a 4/2-way solenoid valve catalogued for MTU 4000 engines. It is the later number for X52499100725, 8593040190, 0616704, 0025402297 and 4 more earlier references, so lists quoting those numbers are normally supplied as X52499100815. The catalog unit weight is 1.180 kg, which we use to estimate freight before quoting.
Technical Notes: Engine components
This group covers structural and miscellaneous engine parts, from covers and housings to brackets, pipes, and fittings, as well as special tools used during maintenance. Fitment depends heavily on the exact engine version and installation, so the engine serial number and catalog position are essential.
When This Type of Part Is Usually Replaced
- the part is cracked, distorted, or damaged during removal
- a modification or later standard requires the updated part
- an overhaul or repair procedure lists the item as replace-on-removal
Checks Before Ordering
- Send a photo of the part in its installed position if the catalog reference is unclear
- Housings and covers may differ between left and right engine banks
- Check whether related seals or fasteners are needed with the part
Engine Catalog References
X52499100815 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 4000 R43 | 8 | V | rail | subgroup 4, build 3 |
| 8V 4000 R43L | 8 | V | rail | subgroup 4, build 3 |
| 12V 4000 R43 | 12 | V | rail | subgroup 4, build 3 |
| 12V 4000 R43L | 12 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43R | 16 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43 | 16 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43L | 16 | V | rail | subgroup 4, build 3 |
| 20V 4000 R43 | 20 | V | rail | subgroup 4, build 3 |
| 20V 4000 R43L | 20 | V | rail | subgroup 4, build 3 |
| 20V 4000 R63R | 20 | V | rail | subgroup 6, build 3 |
| 20V 4000 R63 | 20 | V | rail | subgroup 6, build 3 |
| 20V 4000 R63L | 20 | V | rail | subgroup 6, build 3 |
How Each Model Code Reads
- 8V 4000 R43: 8 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 8V 4000 R43L: 8 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 12V 4000 R43: 12 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 12V 4000 R43L: 12 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 16V 4000 R43R: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, rating variant R
- 16V 4000 R43: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 16V 4000 R43L: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 20V 4000 R43: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 20V 4000 R43L: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 20V 4000 R63R: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3, rating variant R
- 20V 4000 R63: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3
- 20V 4000 R63L: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3, increased rating (L)
Full parts list for this model family: MTU 4000 R43 to R63R Parts List
Engine-series references do not confirm every installation. Final fitment of X52499100815 depends on the full engine serial number and assembly position.
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| X52499100725 | Listed earlier number |
| 8593040190 | Listed earlier number |
| 0616704 | Listed earlier number |
| 0025402297 | Listed earlier number |
| 8690660006 | Listed earlier number |
| 0025402497 | Listed earlier number |
| 0025405497 | Listed earlier number |
| X00041391 | Listed earlier number |
Common Applications
- Marine service
- Industrial maintenance
- Power generation
- Rail traction
Information to Send for Quotation
- Part number: X52499100815
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
X52499100815 FAQ
Is X52499100725 replaced by X52499100815?
Catalog history lists X52499100815 as the later number for X52499100725, 8593040190, 0616704, 0025402297, 8690660006, 0025402497, 0025405497, X00041391. Orders quoting those numbers are normally supplied as X52499100815; we confirm the change against the engine serial number, because a later number can come with related changes to mating parts.
Verification Notes
- For X52499100815, confirm engine model, serial number, required quantity, and destination before ordering.
- If X52499100815 markings or replacement status are unclear, send old-part photos or nameplate details.
