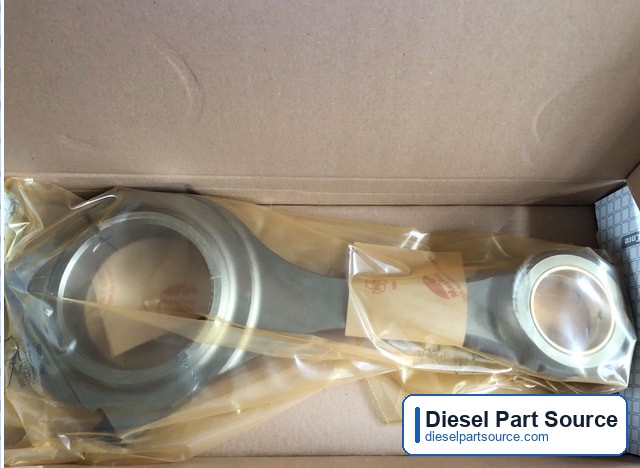

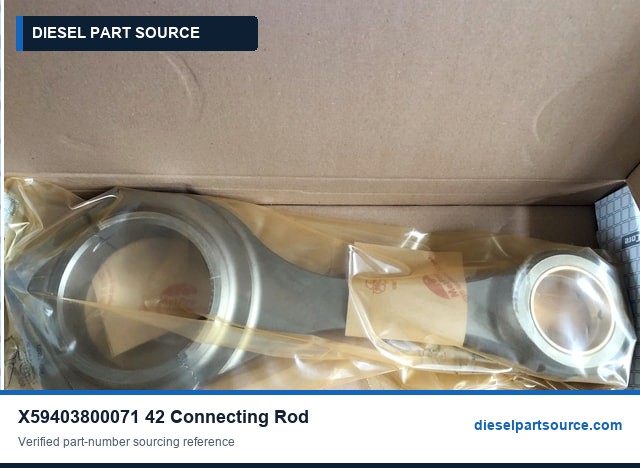

X59403800071/42 Connecting Rod. Listed in MTU 4000 catalog references; confirm installation and current availability before ordering.
Check X59403800071/42 availability: Start with X59403800071/42 and the quantity. Add an engine serial number or a photo of the old Connecting Rod if available; we will follow up on any missing details.
X59403800071/42 Specification
Supply & Availability
- Stock
- Availability confirmed after inquiry
- Lead time
- Stock or sourcing route confirmed after inquiry
Availability is confirmed for each quotation and may change before order release.
About X59403800071/42 - Connecting Rod
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
X59403800071/42 is a connecting rod catalogued for MTU 4000 engines. Catalog history lists EX59403800071/42 as its later number; we check whether the later part can be fitted alone or needs related parts changed with it. The catalog unit weight is 9.800 kg, which we use to estimate freight before quoting.
Technical Notes: Pistons and liners
Pistons, rings, and wet cylinder liners form the combustion chamber and carry the highest thermal loads in the engine. They are usually replaced during a major overhaul, and liner protrusion and size grades have to be checked so the cylinder head seals correctly.
When This Type of Part Is Usually Replaced
- oil consumption or blow-by rises beyond the expected level
- borescope inspection shows liner scoring, bore polishing, or ring damage
- liner cavitation is found on the coolant side
Checks Before Ordering
- Order liners with their sealing rings, and pistons with complete ring sets
- Size grades and weight classes must be matched within one engine
- Measurements from the inspection record decide which grade to order
Engine Catalog References
X59403800071/42 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 4000 R43 | 8 | V | rail | subgroup 4, build 3 |
| 8V 4000 R43L | 8 | V | rail | subgroup 4, build 3 |
| 12V 4000 R43 | 12 | V | rail | subgroup 4, build 3 |
| 12V 4000 R43L | 12 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43R | 16 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43 | 16 | V | rail | subgroup 4, build 3 |
| 16V 4000 R43L | 16 | V | rail | subgroup 4, build 3 |
| 20V 4000 R43 | 20 | V | rail | subgroup 4, build 3 |
| 20V 4000 R43L | 20 | V | rail | subgroup 4, build 3 |
| 20V 4000 R63R | 20 | V | rail | subgroup 6, build 3 |
| 20V 4000 R63 | 20 | V | rail | subgroup 6, build 3 |
| 20V 4000 R63L | 20 | V | rail | subgroup 6, build 3 |
How Each Model Code Reads
- 8V 4000 R43: 8 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 8V 4000 R43L: 8 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 12V 4000 R43: 12 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 12V 4000 R43L: 12 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 16V 4000 R43R: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, rating variant R
- 16V 4000 R43: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 16V 4000 R43L: 16 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 20V 4000 R43: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3
- 20V 4000 R43L: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 4, build generation 3, increased rating (L)
- 20V 4000 R63R: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3, rating variant R
- 20V 4000 R63: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3
- 20V 4000 R63L: 20 cylinders in V arrangement, Series 4000, rail application (R), subgroup 6, build generation 3, increased rating (L)
Full parts list for this model family: MTU 4000 R43 to R63R Parts List
Engine-series references do not confirm every installation. Final fitment of X59403800071/42 depends on the full engine serial number and assembly position.
Usually Ordered with Connecting Rod
Connecting-rod bearings are replaced in pairs with new rod bolts where required. These MTU 4000 references are commonly checked in the same job; each still needs its own fitment check.
- 5240332630 Crankshaft Bearing Aux PTO End
- 5240332730 Crankshaft Bearing Driving End
- 5240336602 Crankshaft Bearing Lower Half
- 5240336702 Crankshaft Bearing Size 0-1
- 5240380471 Conrod Bolt
- 5240382550 Conrod Bushing Size 0
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| EX59403800071/42 | Listed later number |
| 5280300320/42 | Reference only; direction unconfirmed |
| E5280300320/42 | Reference only; direction unconfirmed |
| 5280300320 | Reference only; direction unconfirmed |
| X00040057/42 | Reference only; direction unconfirmed |
| EX00040057/42 | Reference only; direction unconfirmed |
| X52803800001/42 | Reference only; direction unconfirmed |
| X52603800010/42 | Reference only; direction unconfirmed |
| EX52603800010/42 | Reference only; direction unconfirmed |
| X52603800013/42 | Reference only; direction unconfirmed |
| EX52603800013/42 | Reference only; direction unconfirmed |
| X59403800011/42 | Reference only; direction unconfirmed |
| EX59403800011/42 | Reference only; direction unconfirmed |
Common Applications
- Major overhaul
- In-frame rebuild
- Marine engine service
- Industrial engine repair
Information to Send for Quotation
- Part number: X59403800071/42
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
X59403800071/42 FAQ
What replaces X59403800071/42?
Catalog history lists EX59403800071/42 as the later number. We check whether EX59403800071/42 can be fitted on its own or needs related parts changed, and quote X59403800071/42 where it is still available and preferred.
Verification Notes
- For X59403800071/42, confirm engine model, serial number, required quantity, and destination before ordering.
- If X59403800071/42 markings or replacement status are unclear, send old-part photos or nameplate details.
