0031845201 spin-on oil filter for MTU engine service. Compare the manufacturer-listed WD 1374/5 reference, then request the exact offered brand, quantity and price.

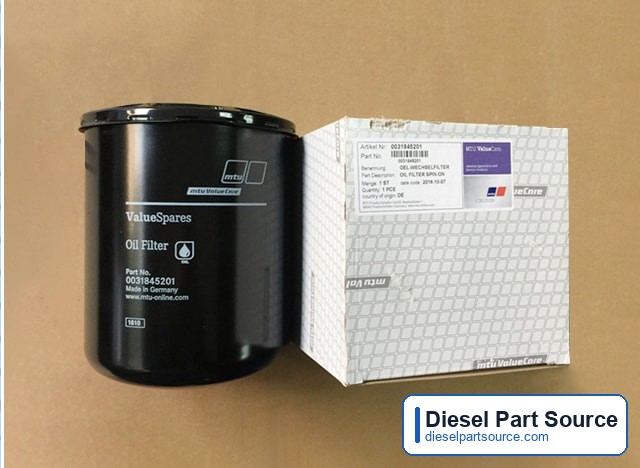

Reference photo: filter and packaging marked 0031845201. This is not a current-stock or batch-origin photograph.
Check 0031845201 availability: Start with 0031845201 and the quantity. Add an engine serial number or a photo of the old Spin-On Oil Filter if available; we will follow up on any missing details.
0031845201 Documented Identification
- Manufacturer cross-reference
- MANN-FILTER lists MTU 003 184 52 01 under WD 1374/5. This identifies a manufacturer-listed alternative, not a claim that the item offered is genuine MTU. Reference
- Thread reference
- WD 1374/5: 1 1/2-16 UN-2B. Confirm this against the installed head and the exact filter brand being quoted. Reference
- Size reference
- WD 1374/5: body diameter 136 mm, height 177 mm, gasket inside/outside diameters 100/111 mm. These are alternative-product dimensions, not measurements of MTU stock. Reference
- Manufacturer application list
- WD 1374/5 lists 10V 2000 M72, 10V 2000 M92/M93 and 8V 2000 M92/M93. Other models require a separate check. Reference
- Photo identification
- The filter body and box show the requested MTU number. Ask for fresh label and mounting-base photos of the offered batch before accepting supply. Reference
Reference documents and photographs
- MANN-FILTER WD 1374/5: dimensions, applications and MTU OE reference
- 0031845201 catalog reference photograph
References reviewed 2026-10-10. Current stock and offered-unit specifications are confirmed separately.
0031845201 Specification
Supply & Availability
- Stock
- Availability confirmed after inquiry
- Lead time
- Stock or sourcing route confirmed after inquiry
Availability is confirmed for each quotation and may change before order release.
0031845201 Quotation Scope
- Requested contents
- Spin-on oil filter; filter head not included unless quoted.
- Evidence to request
- Filter label, base/thread and sealing-ring measurements.
- Supplier confirmation
- Current stock, exact supplied condition and unit-specific documents are not confirmed by this catalog record. Request them with the quotation.
- Quote acceptance
- Offered number, quantity, included items, condition, price, lead time and delivery terms must be agreed before order release.
About 0031845201 - Spin-On Oil Filter
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
Identify 0031845201 by the number on the filter body and the installed filter head. The mounting thread, sealing-ring dimensions, and available clearance must agree with the existing assembly; a similar canister shape alone does not establish interchangeability.
Technical Data Status
Published catalog details help identify this part, but they are not a controlled drawing for the item offered. Measurements that are not shown here still need confirmation before substitution or order.
- MANN WD 1374/5 has a published 1 1/2-16 UN-2B thread reference. A current MTU-labelled unit has not been measured here; confirm the brand and base before substitution.
- Compare canister height, body diameter and gasket inside/outside diameters. Manufacturer alternative dimensions must not be used as packed dimensions or measurements of another brand.
Request a datasheet or measurement check
Engine Catalog References
0031845201 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of 0031845201 depends on the full engine serial number and assembly position.
Usually Ordered with Spin-On Oil Filter
Filters are changed with their housing seals, often as a full filter set. These MTU 2000 references are commonly checked in the same job; each still needs its own fitment check.
- 0000180680 Gasket
- 0000943268 Air Filter Restriction Indicator
- 0020921901 Spin-On Fuel Filter
- 0031845301 Spin-On Oil Filter
- 05132155 Sealing Ring
- 5241840501 Lube Oil Full-Flow Filter
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| 0031844601 | Reference only; direction unconfirmed |
| 0031844801 | Reference only; direction unconfirmed |
Common Applications
- Scheduled maintenance
- Fleet service programs
- Marine engine rooms
- Generator servicing
Information to Send for Quotation
- 0031845201 and required quantity; genuine MTU or an identified alternative requested
- Engine model and serial number, if available
- Filter label, mounting-base photo and existing thread/seal details
- Destination country; request exact offered brand, net/gross weight and lead time
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Ordering Notes
Keep 0031845201 with its leading zeros. Request one clearly identified filter brand per quote line; the manufacturer cross-reference does not imply that a WD 1374/5 alternative will arrive in MTU packaging.
0031845201 FAQ
What thread reference is available for 0031845201?
MANN-FILTER lists MTU 003 184 52 01 under WD 1374/5, whose published thread is 1 1/2-16 UN-2B. This is the alternative manufacturer product specification, not a measurement of current MTU stock. Check the offered brand and installed filter head.
Can I request a 0031845201 brochure or dimension drawing?
Include the document request with your inquiry. We check whether a supplier datasheet or drawing is available for the offered filter; the catalog weight alone does not establish its dimensions.
Will the quote supply MTU 0031845201 or MANN WD 1374/5?
State your preferred brand and whether a manufacturer-listed alternative is acceptable. The quote must identify the exact brand and number offered; these are not the same branded product.
Verification Notes
- Catalog references and engine-series listings require confirmation against the full engine serial number before order.
