5241840501 Lube Oil Full-Flow Filter. Listed in MTU 2000 catalog references; confirm installation and current availability before ordering.
Check 5241840501 availability: Start with 5241840501 and the quantity. Add an engine serial number or a photo of the old Lube Oil Full-Flow Filter if available; we will follow up on any missing details.
5241840501 Specification
About 5241840501 - Lube Oil Full-Flow Filter
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.

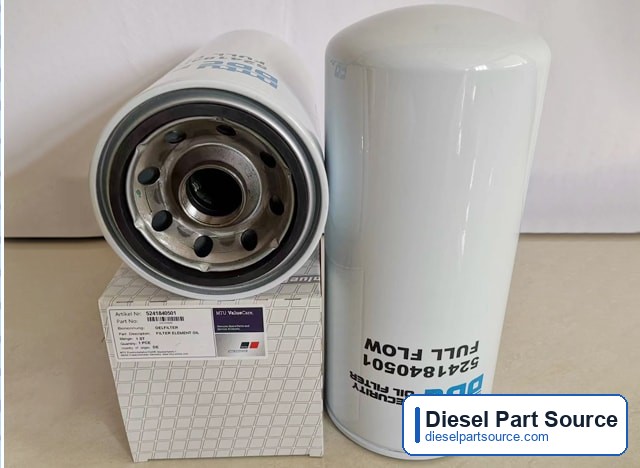

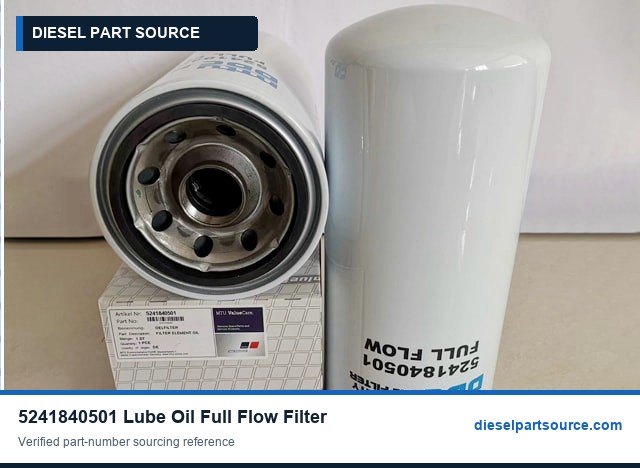

5241840501 is a lube oil full-flow filter catalogued for MTU 2000 engines. Catalog history lists X54718300056 as its later number; we check whether the later part can be fitted alone or needs related parts changed with it. The catalog unit weight is 2.058 kg, which we use to estimate freight before quoting.
Technical Notes: Filters
Oil, fuel, and air filters protect the most expensive parts of the engine: bearings, injectors, and turbochargers. MTU specifies filter fineness and capacity for each series, and fuel filtration in particular is matched to the injection system, because common-rail injectors tolerate far less contamination than older pump-and-nozzle systems.
When This Type of Part Is Usually Replaced
- the scheduled service interval in the maintenance schedule is reached
- the differential-pressure indicator or a filter alarm signals restriction
- fuel contamination, water in fuel, or a dust ingress event has occurred
Checks Before Ordering
- Replace primary and secondary fuel filters together unless the maintenance schedule says otherwise
- Easy-change and spin-on versions of a filter are not always interchangeable on the same housing
- Keep one complete filter set per engine on board or on site for unplanned changes
Engine Catalog References
5241840501 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of 5241840501 depends on the full engine serial number and assembly position.
Common Replacement Scenarios
This part is commonly replaced when:
- scheduled service interval is due and the filter list needs line-by-line confirmation
- restriction, contamination, or pressure-drop alarms point to filter replacement
- fleet buyers need the same filter reference packed for repeated maintenance jobs
Usually Ordered with Lube Oil Full-Flow Filter
Filters are changed with their housing seals, often as a full filter set. These MTU 2000 references are commonly checked in the same job; each still needs its own fitment check.
- 0000180680 Gasket
- 0000943268 Air Filter Restriction Indicator
- 0020921901 Spin-On Fuel Filter
- 0031845201 Spin-On Oil Filter
- 05132155 Sealing Ring
- 5320900001 Air Filter
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| X54718300056 | Listed later number |
| 5241840301 | Reference only; direction unconfirmed |
| SUA107365 | Reference only; direction unconfirmed |
| P550512 | Reference only; direction unconfirmed |
Common Applications
- Scheduled maintenance
- Fleet service programs
- Marine engine rooms
- Generator servicing
Information to Send for Quotation
- Exact part number: 5241840501
- Part name or assembly position: Lube Oil Full-Flow Filter
- Engine model / series: MTU 2000
- Engine serial number from nameplate
- Old-part photo showing number, connector, port, or size marking
- Required quantity and whether partial shipment is acceptable
- Destination country, delivery deadline, and preferred shipping method
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Ordering Notes
For 5241840501, send the engine model, serial number, quantity, old-part photo, and destination country. We will confirm whether the item is OEM, OEM-alternative, reman, or superseded before quotation.
5241840501 FAQ
Does 5241840501 fit MTU 2000?
5241840501 Lube Oil Full-Flow Filter is checked against MTU 2000. Final fitment depends on the engine serial number, rating, and installation position.
What information is needed to quote 5241840501?
Send the part number, engine model, engine serial number, old-part photo, quantity, destination country, and required delivery date. This lets us confirm stock route, packing, and shipping options.
Can you check alternatives or superseded numbers for 5241840501?
5241840501 may relate to X54718300056, 5241840301, SUA107365, P550512. Final replacement status is checked against the engine serial number before quote.
When is 5241840501 usually replaced?
scheduled service interval is due and the filter list needs line-by-line confirmation; restriction, contamination, or pressure-drop alarms point to filter replacement; fleet buyers need the same filter reference packed for repeated maintenance jobs.
What replaces 5241840501?
Catalog history lists X54718300056 as the later number. We check whether X54718300056 can be fitted on its own or needs related parts changed, and quote 5241840501 where it is still available and preferred.
Verification Notes
- Confirm engine model, serial number, required quantity, and destination before ordering.
- Send old part photos or nameplate details when markings or replacement status are unclear.
- Priority item: part number, supersession, and export packing details are checked before quote.
