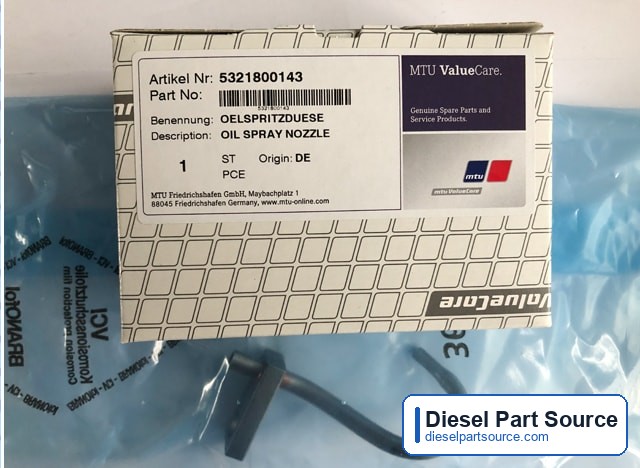

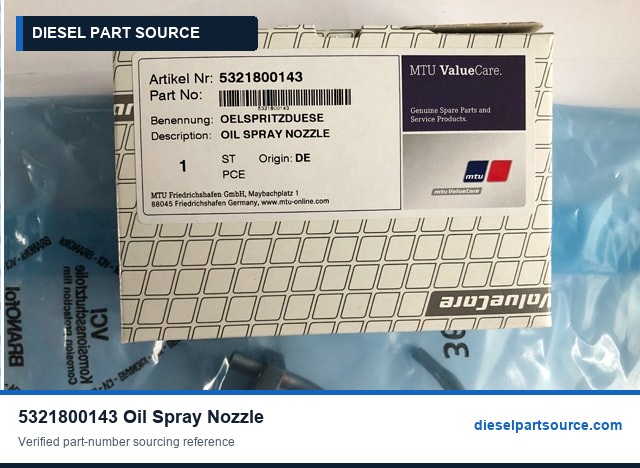

5321800143 Oil Spray Nozzle. Listed in MTU 2000 catalog references; confirm installation and current availability before ordering.
Check 5321800143 availability: Start with 5321800143 and the quantity. Add an engine serial number or a photo of the old Oil Spray Nozzle if available; we will follow up on any missing details.
5321800143 Specification
About 5321800143 - Oil Spray Nozzle
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5321800143 is an oil spray nozzle catalogued for MTU 2000 engines. The catalog unit weight is 0.030 kg, which we use to estimate freight before quoting.
Technical Notes: Lubrication
The lubrication system supplies oil to bearings, pistons, the valve train, and turbochargers, and on many engines also cools the pistons. Low oil pressure is one of the main protective shutdown triggers, so pumps, valves, and coolers in this circuit are critical to availability.
When This Type of Part Is Usually Replaced
- oil pressure drops at operating temperature compared with earlier readings
- oil analysis shows coolant, fuel dilution, or rising wear metals
- the oil cooler leaks internally or externally
Checks Before Ordering
- Use an oil of the category permitted for the engine and fuel in use
- Pressure-relief and regulating valves should be replaced with their springs and seals
- After a bearing failure, clean or replace the oil cooler to remove debris
Engine Catalog References
5321800143 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of 5321800143 depends on the full engine serial number and assembly position.
Usually Ordered with Oil Spray Nozzle
Injectors are refitted with new sealing rings, and the high-pressure connection is checked at the same time. These MTU 2000 references are commonly checked in the same job; each still needs its own fitment check.
Cross-Reference and Superseded Part Numbers
5321800143 has no public alternative number listed in our current data. We still check old-part photos, engine serial number, and catalog position for supersession before quotation.
Common Applications
- Marine engines
- Industrial engines
- Generator maintenance
Information to Send for Quotation
- Part number: 5321800143
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
Verification Notes
- Confirm engine model, serial number, required quantity, and destination before ordering.
- Send old part photos or nameplate details when markings or replacement status are unclear.
