5320900001 Air Filter. Listed in MTU 2000 catalog references; confirm installation and current availability before ordering.
Check 5320900001 availability: Start with 5320900001 and the quantity. Add an engine serial number or a photo of the old Air Filter if available; we will follow up on any missing details.
5320900001 Specification

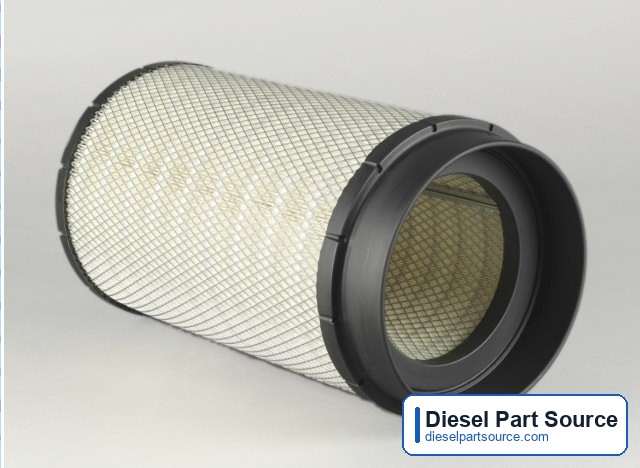

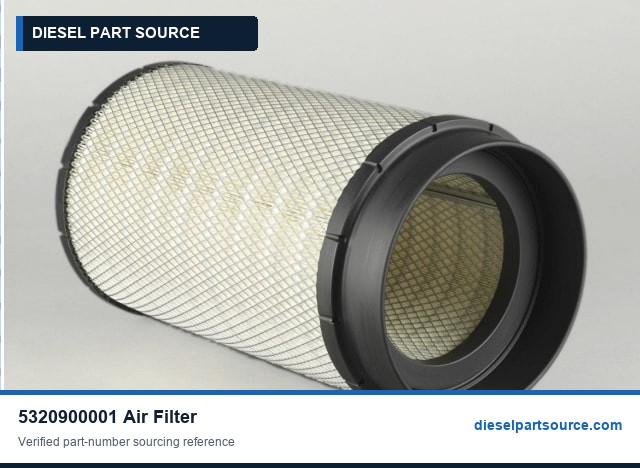

About 5320900001 - Air Filter
Published catalog details are identification references. They do not establish current stock, supplied condition, or confirmed fitment for your engine.
5320900001 is an air filter catalogued for MTU 2000 engines. Catalog history lists X54312100001 as its later number; we check whether the later part can be fitted alone or needs related parts changed with it. The catalog unit weight is 2.400 kg, which we use to estimate freight before quoting.
Technical Notes: Filters
Oil, fuel, and air filters protect the most expensive parts of the engine: bearings, injectors, and turbochargers. MTU specifies filter fineness and capacity for each series, and fuel filtration in particular is matched to the injection system, because common-rail injectors tolerate far less contamination than older pump-and-nozzle systems.
When This Type of Part Is Usually Replaced
- the scheduled service interval in the maintenance schedule is reached
- the differential-pressure indicator or a filter alarm signals restriction
- fuel contamination, water in fuel, or a dust ingress event has occurred
Checks Before Ordering
- Replace primary and secondary fuel filters together unless the maintenance schedule says otherwise
- Easy-change and spin-on versions of a filter are not always interchangeable on the same housing
- Keep one complete filter set per engine on board or on site for unplanned changes
Engine Catalog References
5320900001 is listed for 12 engine models in the catalog references. The specification table decodes each model code from the fitment list; it does not confirm every installation.
| Model | Cylinders | Arrangement | Application | Group / build |
|---|---|---|---|---|
| 8V 2000 M72 | 8 | V | marine | subgroup 7, build 2 |
| 10V 2000 M72 | 10 | V | marine | subgroup 7, build 2 |
| 12V 2000 M93 | 12 | V | marine | subgroup 9, build 3 |
| 16V 2000 M93 | 16 | V | marine | subgroup 9, build 3 |
| 12V 2000 M92 | 12 | V | marine | subgroup 9, build 2 |
| 16V 2000 M92 | 16 | V | marine | subgroup 9, build 2 |
| 12V 2000 M72 | 12 | V | marine | subgroup 7, build 2 |
| 16V 2000 M72 | 16 | V | marine | subgroup 7, build 2 |
| 8V 2000 M94 | 8 | V | marine | subgroup 9, build 4 |
| 8V 2000 M84 | 8 | V | marine | subgroup 8, build 4 |
| 8V 2000 M84L | 8 | V | marine | subgroup 8, build 4 |
| 12V 2000 M61 | 12 | V | marine | subgroup 6, build 1 |
How Each Model Code Reads
- 8V 2000 M72: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 10V 2000 M72: 10 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 12V 2000 M93: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 16V 2000 M93: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 3
- 12V 2000 M92: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 16V 2000 M92: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 2
- 12V 2000 M72: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 16V 2000 M72: 16 cylinders in V arrangement, Series 2000, marine application (M), subgroup 7, build generation 2
- 8V 2000 M94: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 9, build generation 4
- 8V 2000 M84: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4
- 8V 2000 M84L: 8 cylinders in V arrangement, Series 2000, marine application (M), subgroup 8, build generation 4, increased rating (L)
- 12V 2000 M61: 12 cylinders in V arrangement, Series 2000, marine application (M), subgroup 6, build generation 1
Full parts list for this model family: MTU 2000 M61 to M94 Parts List
Engine-series references do not confirm every installation. Final fitment of 5320900001 depends on the full engine serial number and assembly position.
Usually Ordered with Air Filter
Filters are changed with their housing seals, often as a full filter set. These MTU 2000 references are commonly checked in the same job; each still needs its own fitment check.
- 0000180680 Gasket
- 0000943268 Air Filter Restriction Indicator
- 0020921901 Spin-On Fuel Filter
- 0031845201 Spin-On Oil Filter
- 05132155 Sealing Ring
- 5241840501 Lube Oil Full-Flow Filter
Cross-Reference and Superseded Part Numbers
Catalog history distinguishes earlier and later numbers where documented. Reference-only entries do not establish replacement direction or interchangeability. Confirm the offered number against the engine serial number and installation.
| Part number | Catalog relationship |
|---|---|
| X54312100001 | Listed later number |
| B090081 | Reference only; direction unconfirmed |
Common Applications
- Scheduled maintenance
- Fleet service programs
- Marine engine rooms
- Generator servicing
Information to Send for Quotation
- Part number: 5320900001
- Engine model, rating, and serial number
- Nameplate photo and old part photo when available
- Quantity, destination country, and required delivery date
The quotation confirms the offered part number, supply condition, price, lead time, and shipping options.
5320900001 FAQ
What replaces 5320900001?
Catalog history lists X54312100001 as the later number. We check whether X54312100001 can be fitted on its own or needs related parts changed, and quote 5320900001 where it is still available and preferred.
Verification Notes
- Confirm engine model, serial number, required quantity, and destination before ordering.
- Send old part photos or nameplate details when markings or replacement status are unclear.
